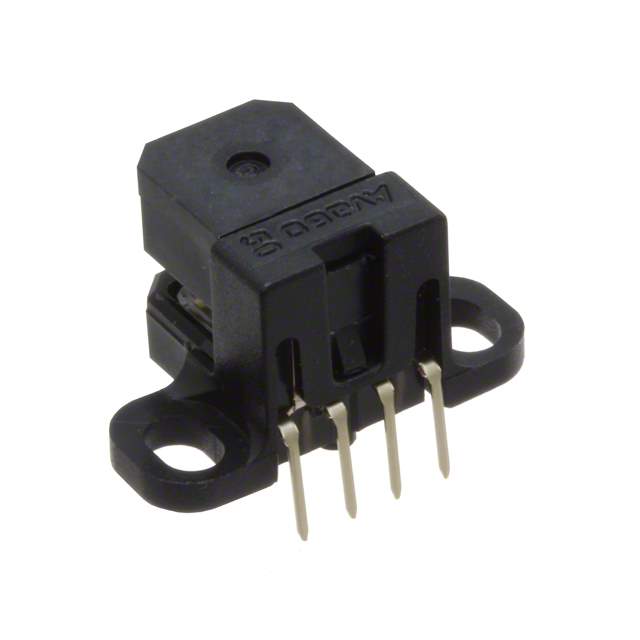

HEDS-9730#A50 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9730#A50

Part No HEDS-9730#A50
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER SMALL 2CH 500CPR STD / Optical Encoder Rotary Incremental Straight Digital Through Hole PC Pin 500CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 500
Operating Supply Voltage 3.3VDC
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775908-HEDS-9730#A50
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name HEDS-9730
Introduction Date January 01, 2006
Country of Origin Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-9730#A50 CAD Model

Description

The HEDS-9730#A50 is an incremental optical encoder from Broadcom Limited.

  • Termination Style: Terminal Pins
  • Supply Voltage: 3.3VDC
  • Output Type: Quadrature
  • Actuator Type: Codewheel not included
  • Family Name: HEDS-9730
  • Encoder Type: Optical
  • Pulses per revolution: 500
  • Applications: Sensors and Transducers
  • Supply and Demand Status: Limited
  • Package Quantity: 50
