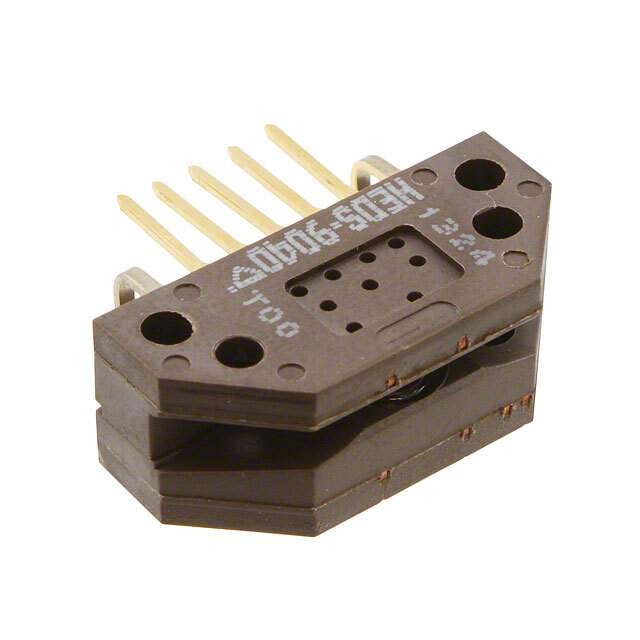

HEDS-9040#T00

Part No HEDS-9040#T00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER OPTICAL GAP 3CH 2000CPR / Optical Encoder Rotary Incremental Straight Digital Through Hole PC Pin 2000CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 2000
Operating Supply Voltage 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775879-HEDS-9040#T00
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name HEDS-9040
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-9040#T00 CAD Model

Description

The Broadcom Limited HEDS-9040#T00 is an optical encoder that comes in the HEDS series, made by Broadcom Limited.

  • Orientation: Vertical
  • Mounting Type: Chassis mount
  • Operating Supply Voltage: 5V
  • Output Type: Quadrature with index (incremental)
  • Codewheel: Not included
  • Built-in Switch: No
  • Pulses Per Revolution: 2000
  • Detent: No
  • Rotational Life: Cycles minimum
  • ECCN: EAR99
  • Halogen-Free: No
  • Estimated EOL Date: 2027
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Package Quantity: 100
