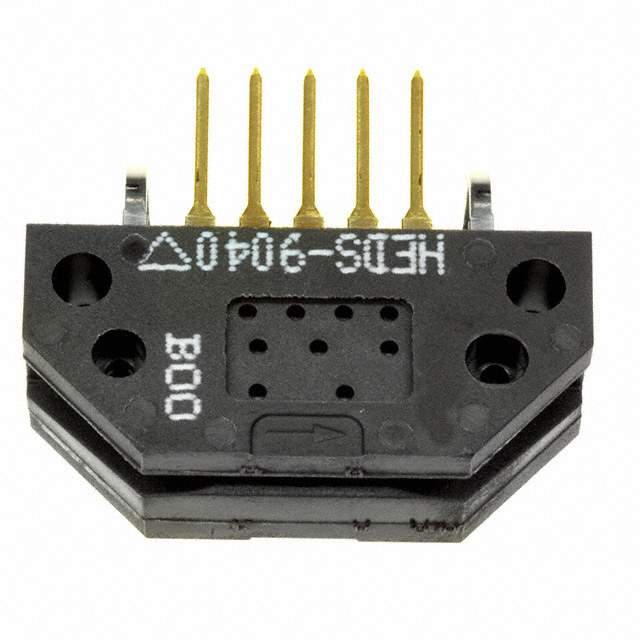

HEDS-9040#B00 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9040#B00

Part No HEDS-9040#B00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER MOD OPT INCREMENTAL 3CH / Optical Encoder Rotary Incremental Straight Digital Through Hole PC Pin 1000CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 1000
Operating Supply Voltage 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775878-HEDS-9040#B00
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name HEDS-9040
Introduction Date May 31, 2005
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-9040#B00 CAD Model

Description

The Broadcom Limited 775878-HEDS-9040#B00 is an optical encoder suitable for use in various electronic devices manufactured by Broadcom Limited.

  • Output Type: Quadrature with index
  • Operating Supply Voltage: 5V
  • Orientation: Vertical
  • Encoder Type: Optical
  • Pulses Per Revolution: 1000
  • Rotational Life: Not specified
  • Series: HEDS
  • Termination Style: Terminal pins
  • Mounting Type: Chassis mount
  • Detent: No
  • Built-in Switch: No
  • Family Name: HEDS-9040
  • Introduction Date: May 31, 2005
  • Estimated EOL Date: 2027
  • ECCN: EAR99
  • Country of Origin: Malaysia
  • Halogen-Free: Not compliant
  • Supply and Demand Status: Limited
  • Package Quantity: 100
