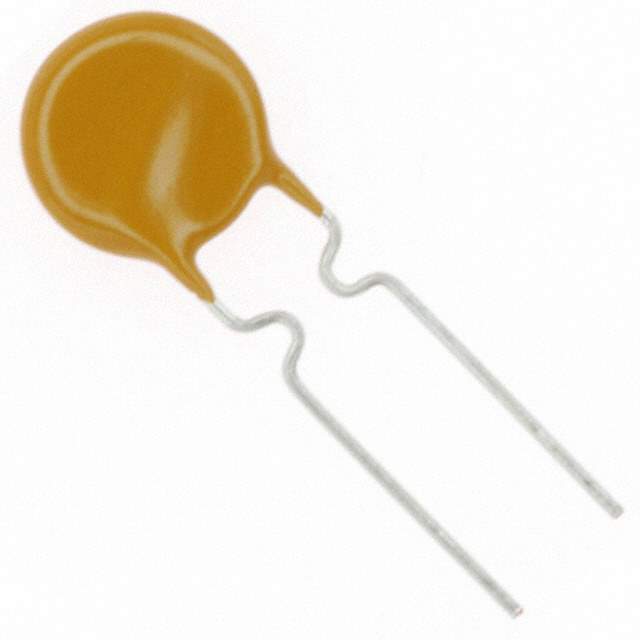

MF-R065-2 Real Image
Same model may have multiple batches, images only for reference.

MF-R065-2

Part No MF-R065-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE
Datasheet
MF-R065-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 60V
Current - Max 40A
Current - Hold (Ih) (Max) 650mA
Current - Trip (It) 1.3A
Time to Trip 5.3s
Resistance - Initial (Ri) (Min) 270 mOhm
Resistance - Post Trip (R1) (Max) 720 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Through Hole
Dimension 0.382" Dia x 0.122" W (9.70mm x 3.10mm)
Height - Seated (Max) 0.598" (15.20mm)
Lead Spacing 0.201" (5.10mm)
Approvals cURus, TUV
Win Source Part Number 003414-MF-R065-2
Ultra Librarian 3D Model Ultra Librarian MF-R065-2 CAD Model

Description

The Bourns Inc. MF-R065-2 is a polymeric type circuit protection component designed for use in various applications.

  • Maximum Voltage Rating: 60V
  • Maximum Current Rating: 40A
  • Hold Current: 650mA
  • Trip Current: 1.3A
  • Time to Trip: 5.3s
  • Approvals: cURus and TUV
  • Mounting: Through-hole mounted
  • Height: 0.598" (15.20mm)
  • Lead Spacing: 0.201" (5.10mm)
  • Dimensions: 0.382" Dia x 0.122" W (9.70mm x 3.10mm)
  • Resistance: 270 mOhm initial and 720 mOhm post trip
  • Manufactured in: China
  • Status: Common-used part with sufficient supply and demand status
