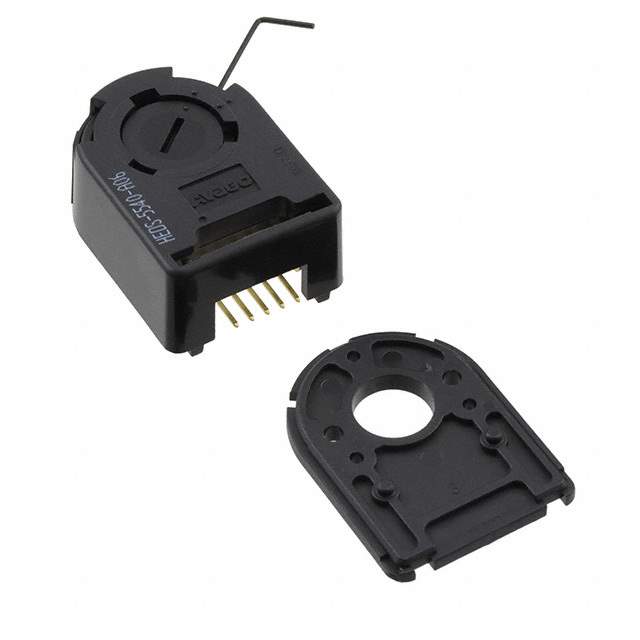

HEDS-5540#A06 Real Image
Same model may have multiple batches, images only for reference.

HEDS-5540#A06

Part No HEDS-5540#A06
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER OPT 3CH QUICK ASSM / Optical Encoder Rotary Incremental Round with Slot Straight Digital Through Hole PC Pin 500CPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 500
Operating Supply Voltage 5V
Actuator Type 1/4" Open Center
Detent No
Built in Switch No
Mounting Chassis Mount, Motors
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775866-HEDS-5540#A06
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name HEDS-5540
Introduction Date May 31, 2005
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-5540#A06 CAD Model

Description

The Broadcom Limited HEDS-5540#A06 is an optical encoder with a 1/4" open center actuator type.

  • Actuator Type: 1/4" open center
  • Pulses per Revolution: 500
  • Mounting: Chassis mount and motor
  • Series: HEDS
  • Termination: Terminal pins
  • Halogen-Free: No
  • Popularity: Medium
