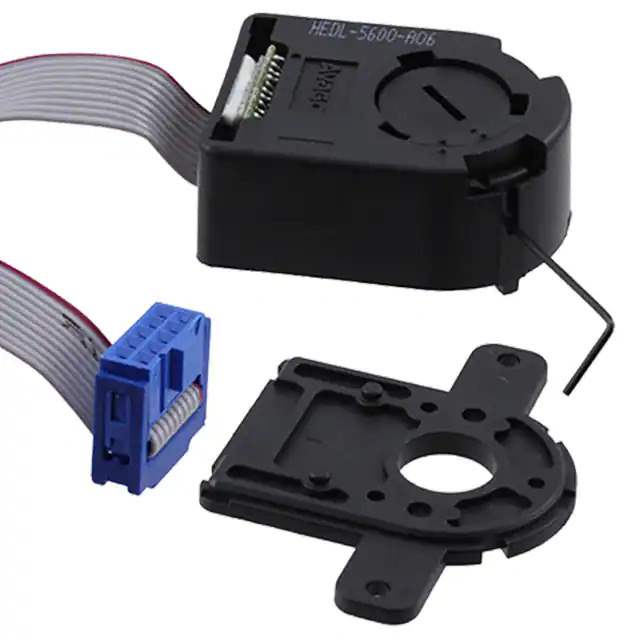

HEDL-5600#A06 Real Image
Same model may have multiple batches, images only for reference.

HEDL-5600#A06

Part No HEDL-5600#A06
Manufacturer Broadcom Limited
Catalog Encoders
Description ROTARY ENCODER OPTICAL 500PPR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Encoders - Industrial
Mfr Broadcom Limited
Series HEDL
Package Bulk
Product Status Active
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 500
Voltage - Supply 5V
Actuator Type 1/4" Open Center
Detent No
Built in Switch No
Mounting Type Chassis Mount, Motors
Orientation Vertical
Termination Style Cable with Connector
Base Product Number HEDL-5600
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.4500
Win Source Part Number 920135-HEDL-5600#A06
Ultra Librarian 3D Model Ultra Librarian HEDL-5600#A06 CAD Model

Description

The HEDL-5600#A06 is an industrial encoder from Broadcom Limited.

  • Category: Sensors, Transducers - Encoders - Industrial
  • Termination Style: cable with connector
  • Package: bulk
  • Orientation: vertical
  • Standard Package: 20 pcs
  • Output Type: quadrature (incremental)
  • Actuator Type: 1/4" open center
  • Type: optical encoder
  • Pulses per Revolution: 500
  • Voltage Supply: 5V
  • Mounting: chassis or motors
  • REACH: unaffected
  • Moisture Sensitivity Level: 1 (unlimited)
