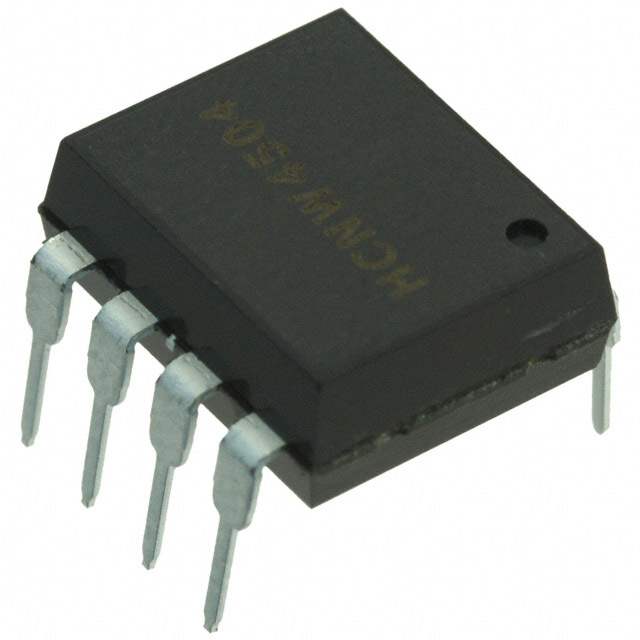

The HCNW4504-000E is an optocoupler with high isolation voltage, high-speed performance, and reliability in a small 8-DIP package.

• Isolation Voltage: 5000Vrms
• Forward Voltage: 1.59V
• DC Current Transfer Ratio (Min): 19% @ 16mA
• DC Current Transfer Ratio (Max): 63% @ 16mA
• Switching Turn-On Time: 200ns
• Switching Turn-Off Time: 300ns
• Output Voltage (Max): 20V
• Channel Output Current: 8mA
• Continuous Forward Current: 25mA
• Operating Temperature: -55°C to 85°C
• Applications: Power supplies, motor control, programmable logic controllers
