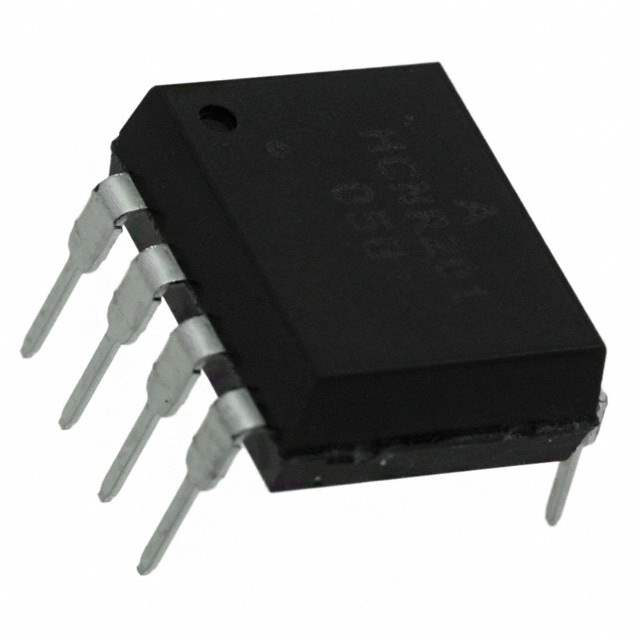

HCNR201-050E Real Image1 HCNR201-050E Real Image2
Same model may have multiple batches, images only for reference.
HCNR201-050E Real Image1 HCNR201-050E Real Image2
HCNR201-050E Real Image1 HCNR201-050E Real Image2
Same model may have multiple batches, images only for reference.

HCNR201-050E

Part No HCNR201-050E
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV LINEAR PHVOLT 8DIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Tube/Rail
Status Active
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 0.36% @ 10mA
Maximum DC Current Transfer Ratio 0.72% @ 10mA
Input Type DC
Output Type Photovoltaic, Linearized
Forward Voltage 1.6V
Continuous forward current- Max 25mA
Temperature Range - Operating -55°C to 100°C
Mounting Through Hole
Case / Package 8-DIP
Win Source Part Number 127947-HCNR201-050E
Popularity Medium
Supply and Demand Status Limited
Quantity per package 42
Ultra Librarian 3D Model Ultra Librarian HCNR201-050E CAD Model

Description

The HCNR201-050E is an active electronic component manufactured by Broadcom Limited.

  • Win Source Part Number: 127947-HCNR201-050E
  • Output Type: Photovoltaic, Linearized
  • Forward Voltage: 1.6V
  • Isolation Voltage: 5000Vrms
  • Maximum DC Current Transfer Ratio: 0.72% @ 10mA
