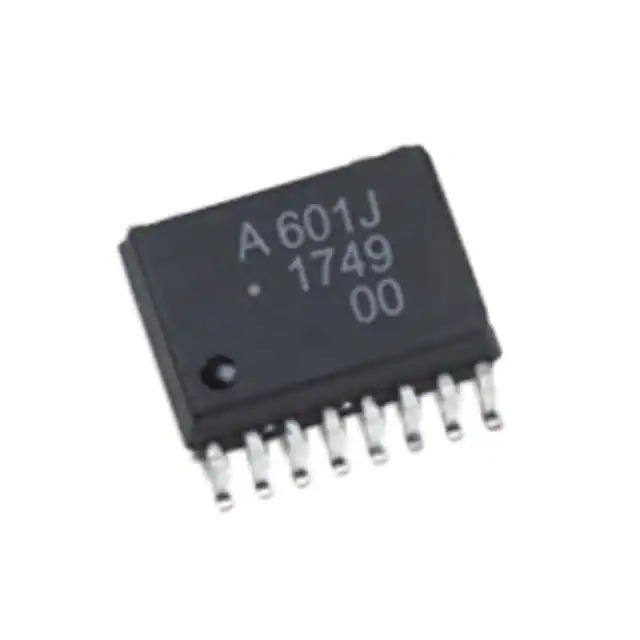

Same model may have multiple batches, images only for reference.
ASSR-601J-000E Broadcom Limited
Same model may have multiple batches, images only for reference.

ASSR-601J-000E

Part No ASSR-601J-000E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description SSR RELAY SPST-NO 10MA 0-1500V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Broadcom Limited
Series ASSR
Package Tube
Product Status Active
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC
Voltage - Input 1.55VDC
Voltage - Load 0 V ~ 1500 V
Load Current 10 mA
On-State Resistance (Max) 300 Ohms
Termination Style Gull Wing
Package / Case 16-SOIC (0.295", 7.50mm Width), 12 Leads
Supplier Device Package 16-SOIC
Base Product Number ASSR-601
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1377871-ASSR-601J-000E
Ultra Librarian 3D Model Ultra Librarian ASSR-601J-000E CAD Model

Description

The Broadcom Limited ASSR-601J-000E is a solid-state relay used in various applications that require reliable switching of AC loads.

  • Package: Tube
  • Package/Case: 16-SOIC (0.295", 7.50mm Width), 12 Leads
  • Voltage Range: 0V to 1500V
  • On-State Resistance: 300 Ohms
  • Load Current: 10mA
  • Input Voltage: 1.55VDC
  • Termination Style: Gull-Wing
