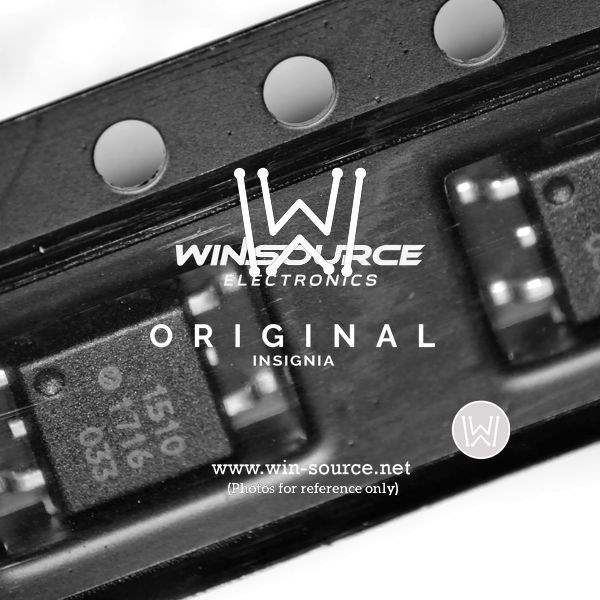

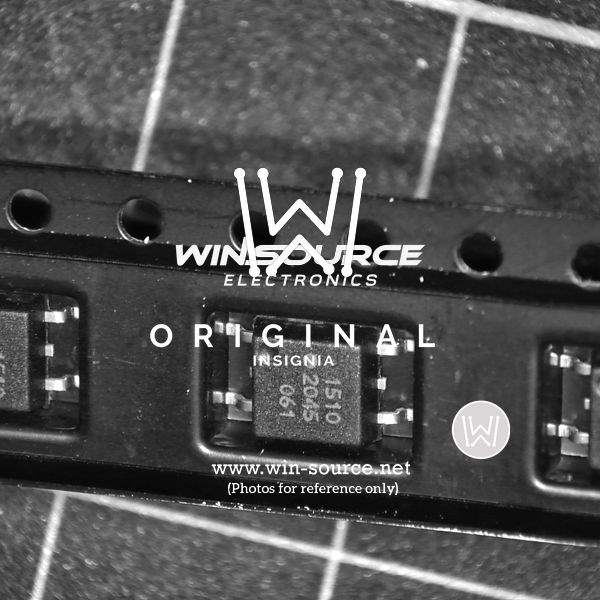

ASSR-1510-503E Real Image ASSR-1510-503E Real Image1 ASSR-1510-503E Real Image2 ASSR-1510-503E Real Image3 ASSR-1510-503E Real Image4 ASSR-1510-503E Real Image5
Same model may have multiple batches, images only for reference.
ASSR-1510-503E Real Image ASSR-1510-503E Real Image1 ASSR-1510-503E Real Image2 ASSR-1510-503E Real Image3 ASSR-1510-503E Real Image4 ASSR-1510-503E Real Image5
ASSR-1510-503E Real Image ASSR-1510-503E Real Image1 ASSR-1510-503E Real Image2 ASSR-1510-503E Real Image3 ASSR-1510-503E Real Image4 ASSR-1510-503E Real Image5
Same model may have multiple batches, images only for reference.

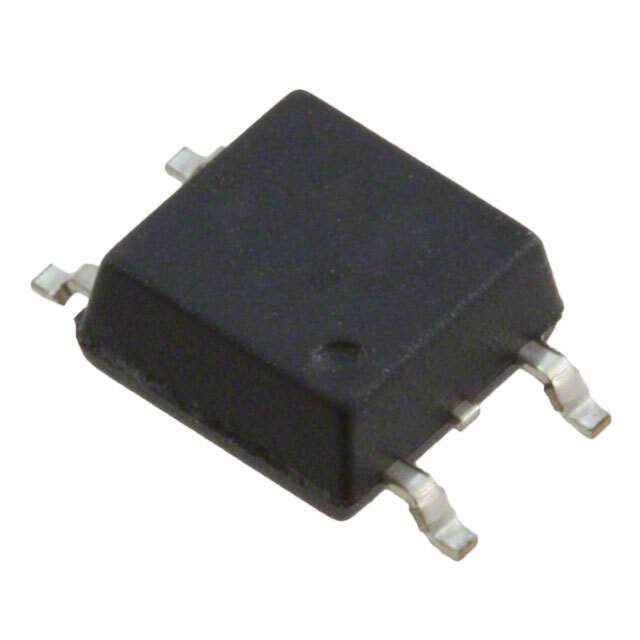

ASSR-1510-503E

Part No ASSR-1510-503E
Manufacturer Broadcom Limited
Catalog Solid State Relays
Description RELAY SSR SPST SGL 1.0A 4-SOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer Broadcom Limited
Packaging Reel - TR
Status Active
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Max On Resistance 500 mOhm
Load Current 1A
Voltage - Input 1.3VDC
Voltage - Load 0 to 60 V
Mounting SMD (SMT)
Termination Style Gull Wing
Case / Package 4-SO
Relay Type Relay
Win Source Part Number 1018654-ASSR-1510-503E
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1,500
Ultra Librarian 3D Model Ultra Librarian ASSR-1510-503E CAD Model

Description

The Broadcom Limited 1018654-ASSR-1510-503E electronic component is manufactured by Broadcom Limited and has a medium popularity in the market.

  • Application: relays
  • Load Current: 1A
  • Voltage Input: 1.3VDC
  • Output Type: AC, DC
  • Circuit: SPST-NO (1 Form A)
  • Relay Type: relay
  • Maximum On Resistance: 500 mOhm
  • Case/Package: 4-SO
  • Quantity per Package: 1,500
