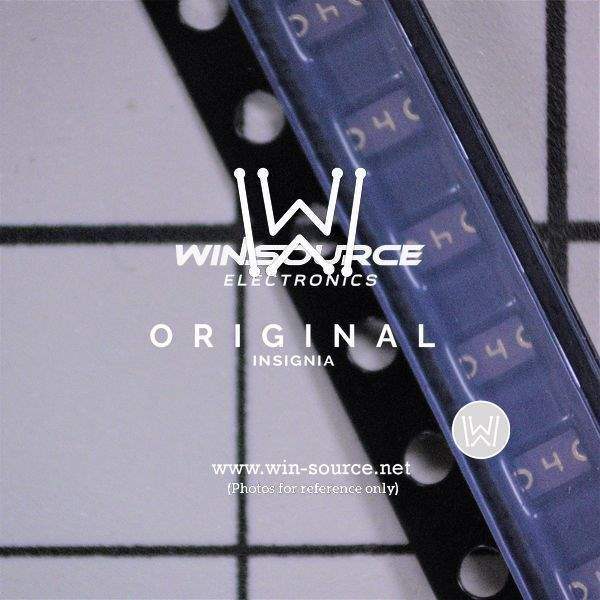

MF-PSMF050X-2 Real Image MF-PSMF050X-2 real image
Same model may have multiple batches, images only for reference.

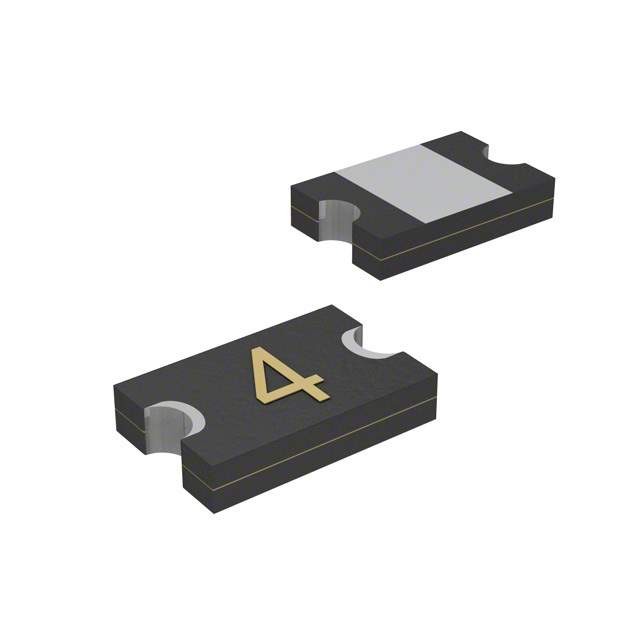

MF-PSMF050X-2 Real Image MF-PSMF050X-2 real image
MF-PSMF050X-2 Real Image MF-PSMF050X-2 real image
Same model may have multiple batches, images only for reference.

MF-PSMF050X-2

Part No MF-PSMF050X-2
Manufacturer Bourns Inc.
Catalog PTC Resettable Fuses
Description FUSE PTC RESETTABLE SMD 0805
Datasheet
MF-PSMF050X-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Polymeric
Voltage - Max 6V
Current - Max 40A
Current - Hold (Ih) (Max) 500mA
Current - Trip (It) 1A
Time to Trip 100ms
Resistance - Initial (Ri) (Min) 150 mOhm
Resistance - Post Trip (R1) (Max) 900 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.085" L x 0.053" W (2.15mm x 1.35mm)
Thickness (Max) 0.033" (0.85mm)
Approvals cURus, TUV
Win Source Part Number 003402-MF-PSMF050X-2
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian MF-PSMF050X-2 CAD Model

Description

The Bourns Inc. 003402-MF-PSMF050X-2 is an electronic component used for circuit protection.

  • Component Type: polymeric
  • Approvals: cURus and TUV
  • Mounting Technology: SMD (SMT)
  • Maximum Thickness: 0.033 inches (0.85mm)
  • Maximum Voltage: 6V
  • Maximum Current: 40A
  • Current Hold: 500mA
  • Current Trip: 1A
  • Time to Trip: 100ms
  • Popularity: medium
  • Supply and demand status: sufficient
  • Widely used in: the electronic industry for circuit protection
