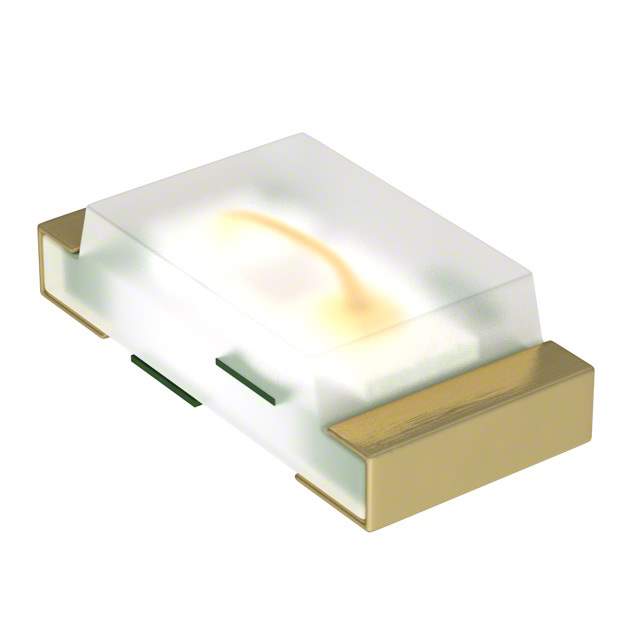

ASMT-RR45-AQ902 Real Image
Same model may have multiple batches, images only for reference.

ASMT-RR45-AQ902

Part No ASMT-RR45-AQ902
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RED DIFFUSED 0603 SMD / Red 622nm LED Indication - Discrete 2V 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel
Color Red
Configuration Standard
Lens Color White
Lens Transparency Diffused
Millicandela Rating 120mcd
Lens Style Rectangle with Flat Top
Lens Size 1.10mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 145°
Mounting SMD (SMT)
Wavelength - Dominant 622nm
Wavelength - Peak 636nm
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 1.60mm L x 0.80mm W
Height (Max) 0.55mm
Base Product Number ASMT-RR
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-2005-1,516-2005-2,ASMTRR45AQ902,516-2005-6
Standard Package 4,000
Win Source Part Number 959810-ASMT-RR45-AQ902
Ultra Librarian 3D Model Ultra Librarian ASMT-RR45-AQ902 CAD Model

Description

This electronic component is an LED indication-discrete product with a red color and a viewing angle of 145°.

  • Millicandela Rating: 120mcd
  • Voltage-Forward (Vf): 2V
  • Wavelength-Dominant: 622nm
  • Wavelength-Peak: 636nm
  • Package: Tape and reel
  • Standard Package: 4,000
  • Lens Style: Rectangular lens with flat top
  • Lens Size: 1.10mm x 0.80mm
  • MSL Level: 2A (4 weeks)
  • REACH: Unaffected
