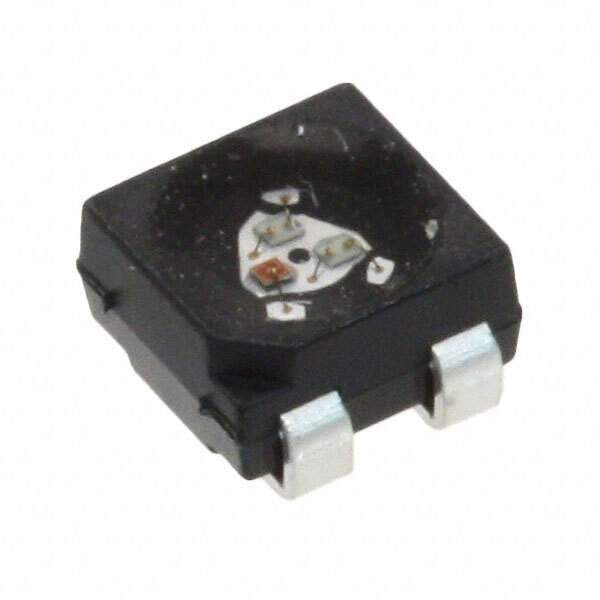

ASMT-QTC0-0AA02 Real Image
Same model may have multiple batches, images only for reference.

ASMT-QTC0-0AA02

Part No ASMT-QTC0-0AA02
Manufacturer Broadcom Limited
Catalog LED Indication - Discrete
Description LED RGB CLEAR 4PLCC SMD / Red, Green, Blue (RGB) 621nm Red, 528nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3.2V Green, 3.2V Blue 4-SMD, J-Lead
Datasheet
ASMT-QTC0-0AA02 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Broadcom Limited
Package Tape & Reel
Product Status Obsolete
Color Red, Green, Blue (RGB)
Configuration Common Anode
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 315mcd Red, 470mcd Green, 140mcd Blue
Lens Style Round with Flat Top
Lens Size 2.90mm Dia
Voltage - Forward (Vf) (Typ) 2.1V Red, 3.2V Green, 3.2V Blue
Current - Test 20mA Red, 20mA Green, 20mA Blue
Viewing Angle 115°
Mounting SMD (SMT)
Wavelength - Dominant 621nm Red, 528nm Green, 470nm Blue
Wavelength - Peak 629nm Red, 521nm Green, 465nm Blue
Package / Case 4-SMD, J-Lead
Supplier Device Package 4-PLCC
Dimension 3.40mm L x 3.20mm W
Height (Max) 2.20mm
Base Product Number ASMT-QTC0
MSL Level 2 (1 Year)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 516-2267-2,ASMT-QTC0-0AA02-ND,516-2267-1,516-2267-6,ASMTQTC00AA02
Standard Package 1,000
Win Source Part Number 969240-ASMT-QTC0-0AA02
Ultra Librarian 3D Model Ultra Librarian ASMT-QTC0-0AA02 CAD Model

Description

The ASMT-QTC0-0AA02 from Broadcom Limited is a surface mount RGB LED indication discrete component.

  • Lens: Clear colorless
  • Lens Style: Round flat top
  • Viewing Angle: 115 degrees
  • Millicandela Rating: 315mcd for red, 470mcd for green, and 140mcd for blue
  • Forward Voltage: 2.1V for red, 3.2V for green, and 3.2V for blue
  • Forward Current: 20mA for all three colors
  • Dominant Wavelength: 621nm for red, 528nm for green, and 470nm for blue
  • Height: 2.20mm
  • Dimension: 3.40mm L x 3.20mm W
  • Package: 4-SMD J-Lead
  • Standard Package: 1,000
  • Status: Obsolete
