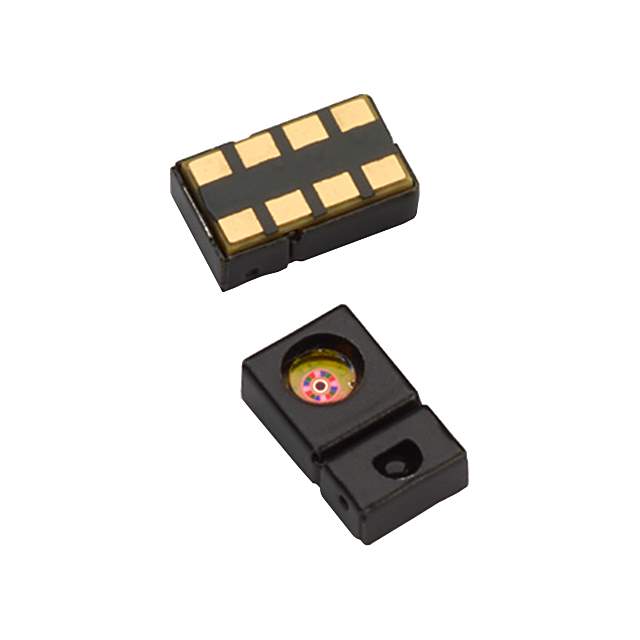

APDS-9801

Part No APDS-9801
Manufacturer Broadcom Limited
Catalog Optical Sensors - Ambient Light, IR, UV Sensors
Description Digital Proximity and Analog Ambient Light Sensor | SENSOR OPT 560NM AMBIENT MODULE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Packaging Tape and Reel
Status Obsolete
Type Ambient
Wavelength 560nm
Proximity Detection Yes
Output Type I2C
Supply Voltage (V) 1.7V ~ 2.7V
Temperature Range - Operating -40°C ~ 70°C
Mounting Style SMD
Manufacturer Package 8-SMD Module
Supplier Device Package Module
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Win Source Part Number 1146299-APDS-9801
Manufacturer Homepage www.avagotech.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian APDS-9801 CAD Model

Description

The APDS-9801 is a digital ambient light and proximity sensor designed for applications such as mobile phones, tablets, and other portable devices. It integrates an ambient light sensor (ALS) and a proximity sensor (PS) into a single package, providing comprehensive light and proximity sensing capabilities. It helps improve user experience by automatically adjusting the display brightness and enabling touch screen disabling during phone calls. This sensor is known for its accuracy, low power consumption, and ease of integration.

Applications

  • Mobile phones and smartphones: Automatic adjustment of display brightness and disabling touchscreen during calls.
  • Tablets: Screen brightness control based on ambient lighting conditions.
  • Laptops: Display backlight adjustment for optimal viewing experience.
  • Wearable devices (smartwatches, fitness trackers): Ambient light sensing and proximity detection for user interaction.
  • Industrial control systems: Light level monitoring for process automation.

Features

  • Integrated Ambient Light Sensor (ALS): Measures ambient light intensity.
  • Integrated Proximity Sensor (PS): Detects the presence of nearby objects.
  • Digital I2C Interface: Enables easy communication with microcontrollers.
  • Programmable Interrupts: Allows for event-driven operation.
  • Low Power Consumption: Extends battery life in portable devices.
  • Small Package Size: Facilitates integration into compact devices.
  • High Sensitivity: Excellent performance in a variety of lighting conditions.

Benefits

  • Improved User Experience: Automatically adjusts display brightness for optimal viewing in different lighting conditions.
  • Enhanced Battery Life: Reduces power consumption by dynamically adjusting display brightness and disabling the touchscreen when not needed.
  • Simplified System Design: Integration of ALS and PS into a single package reduces component count and board space.
  • Accurate and Reliable Sensing: Provides precise ambient light and proximity measurements for reliable operation.
  • Flexible Configuration: Programmable interrupts and gain settings allow for customization based on application requirements.
  • Reduced System Cost: Integrated solution reduces the need for external components.

Additional Details

The APDS-9801 employs advanced optical sensing technology to achieve high accuracy and reliability. It features a wide dynamic range for ambient light sensing and a robust proximity detection algorithm. The I2C interface allows for easy communication with a host microcontroller, and the programmable interrupt functionality enables efficient event-driven operation. The sensor is designed for low power consumption, making it suitable for battery-powered applications. The device is available in a compact package for easy integration into space-constrained designs.
