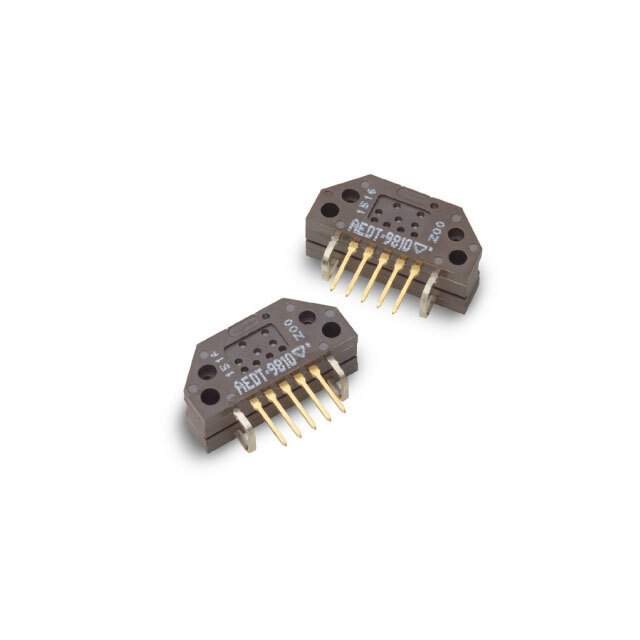

AEDT-9810-Z00 Real Image
Same model may have multiple batches, images only for reference.

AEDT-9810-Z00

Part No AEDT-9810-Z00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER 3CH COMM HI TEMP 5000CPR
Datasheet
AEDT-9810-Z00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Status Active
Encoder Type Optical
Output Type Quadrature with Index (Incremental)
Pulses per Revolution 5000
Supply Voltage - Operating 4.5 V to 5.5 V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation User Selectable
Termination Style Terminal Pins
Win Source Part Number 1016215-AEDT-9810-Z00
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AEDT-9810-Z00 CAD Model

Description

The AEDT-9810-Z00 is an optical encoder manufactured by Broadcom Limited.

  • Applications: Robotics, printers, and machine tools
  • Orientation: User-selectable
  • Mount: Chassis mount
  • Supply Voltage: 4.5 V to 5.5 V
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Detent: No
  • Rotational Life (cycles min): No
  • Encoder Type: Optical
  • Pulses per Revolution: 5000
