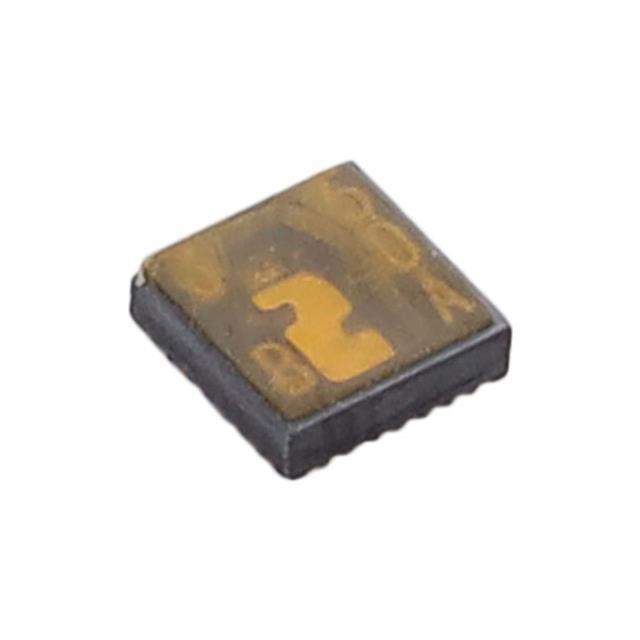

The AEDR-9830A-102 is a miniature high-resolution reflective optical encoder from Broadcom. This encoder is designed for motion control applications requiring precise position and velocity feedback. Its compact size and high resolution make it suitable for a wide range of applications.

Applications:

• Robotics
• Medical Equipment
• Printers
• Scanners
• Factory Automation Equipment
• Motor Control Systems

Features:

• High Resolution: Provides high-resolution feedback for precise motion control.
• Compact Size: Miniature package allows for integration into space-constrained applications.
• Reflective Technology: Utilizes reflective optical sensing for reliable operation.
• Quadrature Outputs: Provides quadrature outputs for determining direction and position.
• Single 5V Supply: Operates from a single 5V power supply.
• Digital Outputs: Offers digital outputs for easy interfacing with microcontrollers and other digital systems.

Benefits:

• Precise Motion Control: Enables precise control of motion in various applications.
• Easy Integration: Compact size and digital outputs simplify integration into existing systems.
• Reliable Performance: Reflective optical sensing ensures reliable operation in diverse environments.
• Cost-Effective Solution: Provides a cost-effective solution for motion control feedback.

Additional Details:

The AEDR-9830A-102 encoder consists of an LED light source, a photodetector array, and a code wheel or code strip. The encoder outputs two quadrature signals (A and B) that are 90 degrees out of phase, allowing for direction detection. The resolution of the encoder is determined by the number of lines on the code wheel or code strip. The output signals are typically TTL compatible. Detailed specifications, including resolution, accuracy, and operating temperature range, can be found in the Broadcom datasheet for this part.
