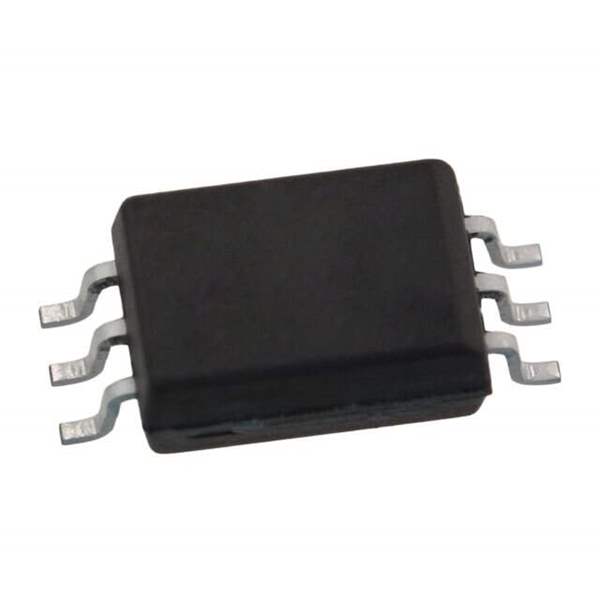

ACPL-P314-500E

Name: ACPL-P314-500E
Brand: Broadcom Limited
SKU: 35552
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACPL-P314-500E
Manufacturer	Broadcom Limited
Catalog	Isolators - Gate Drivers
Description	Optocoupler Drive Push-Pull 1-CH 30V 1500V 6-Pin SO Stretched T/R / OPTOISO 3.75KV GATE DRIVER 6SO
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Broadcom Limited
Packaging	Reel - TR
Status	Active
Technology	Optical Coupling
Number of Channels	1
Isolation Voltage	3750Vrms
Common Mode Transient Immunity (Min)	25kV/μs
Propagation Delay tpLH / tpHL (Max)	700ns, 700ns
Rise and Fall Time	50ns, 50ns
Current - Output High, Low	400mA, 400mA
Current - Peak Output	600mA
Forward Voltage	1.5V
Continuous forward current- Max	25mA
Supply Voltage - Operating	10 V to 30 V
Temperature Range - Operating	-40°C to 100°C
Mounting	SMD (SMT)
Case / Package	6-SO
Approvals	CSA, UR
Win Source Part Number	090992-ACPL-P314-500E
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Quantity per package	1k pcs
Family Name	ACPL-P314
Introduction Date	October 05, 2006
ECCN	EAR99
Country of Origin	Thailand , Philippines
Halogen Free	Not Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian ACPL-P314-500E CAD Model

Description

The ACPL-P314-500E optocoupler is engineered for superior isolation in complex electronic systems. It is ideal for applications demanding high-speed digital signal transmission.

Features and Benefits

Electromagnetic interference resistance: Minimizes the impact of electrical noise on signal quality.
High data integrity: Guarantees accurate signal representation even over extended distances.
Low-offset voltage: Reduces errors in signal transmission for higher precision.

Applications

Instrumentation and measurement equipment
Network routers and switches
Medical equipment
High-speed data communication links
