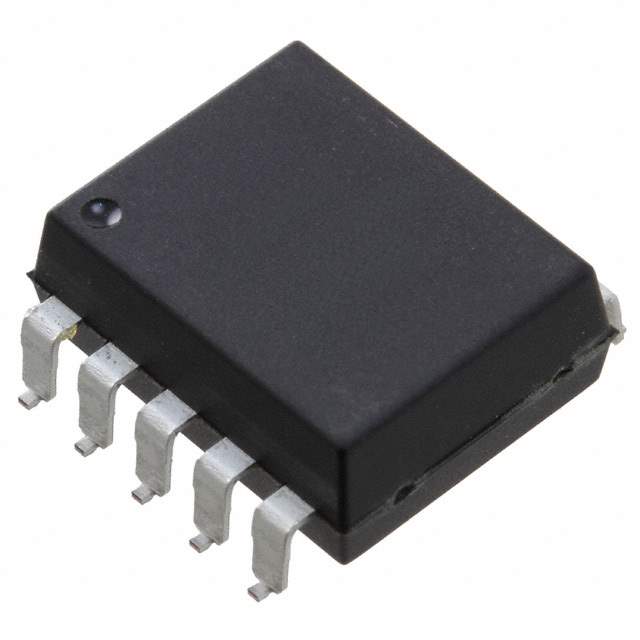

ACNV3130-500E

Name: ACNV3130-500E
Brand: Broadcom Limited
SKU: 766920
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ACNV3130-500E
Manufacturer	Broadcom Limited
Catalog	Isolators - Gate Drivers
Description	OPTOISO 7.5KV GATE DRVR 10DIP GW
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Broadcom Limited
Packaging	Reel package
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	7500Vrms
Common Mode Transient Immunity (Minimum)	40kV/μs
Propagation Delay tpLH / tpHL (Maximum)	500ns, 500ns
Pulse Width Distortion (Maximum)	300ns
Rise / Fall Time (Typ)	100ns, 100ns
Current - Output High, Low	2A, 2A
Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.6V
Current - DC Forward (If) (Maximum)	25mA
Operating Supply Voltage	15 V ~ 30 V
Operating Temperature Range	-40°C ~ 105°C
Mounting	SMD
Package	10-SMD, Gull Wing
Manufacturer Package	10-DIP Gull Wing
Approvals	CSA, IEC/EN/DIN, UR
Win Source Part Number	766920-ACNV3130-500E
Popularity	Medium
Supply and Demand Status	Limited
Quantity per package	500
Family Name	ACNV3130
Introduction Date	October 11, 2012
ECCN	EAR99
Country of Origin	Thailand
Halogen Free	Not Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian ACNV3130-500E CAD Model

Description

The Broadcom Limited 766920-ACNV3130-500E is an optical coupling technology integrated circuit (IC) that is perfect for use in isolation applications.

Package: 10-SMD, Gull Wing
Approvals: CSA, IEC/EN/DIN, UR
Current-Output High and Low: 2A, 2A
Operating Supply Voltage: 15 V ~ 30 V
Voltage-Forward (Vf) (Typ): 1.6V
Voltage-Isolation: 7500Vrms
Estimated EOL Date: 2026
