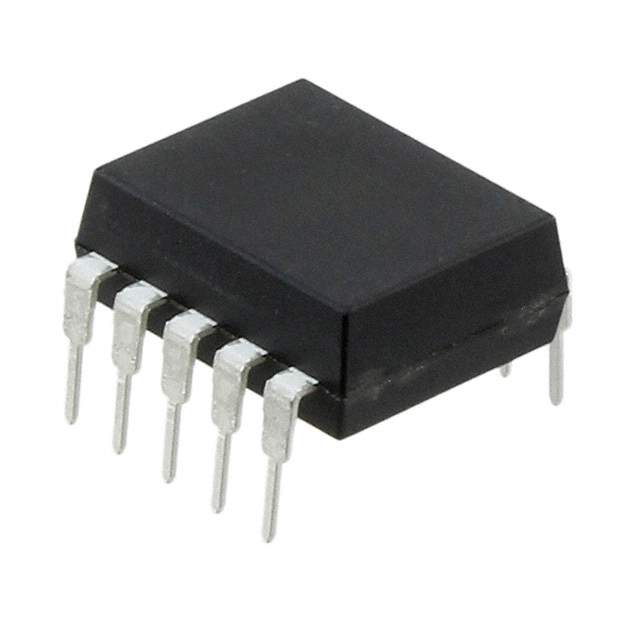

ACNV3130-000E

Name: ACNV3130-000E
Brand: Broadcom Limited
SKU: 766918
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACNV3130-000E
Manufacturer	Broadcom Limited
Catalog	Isolators - Gate Drivers
Description	OPTOISO 7.5KV GATE DRIVER 10DIP
Datasheet	ACNV3130-000E Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Isolators
Manufacturer	Broadcom Limited
Packaging	Tube
Technology	Optical Coupling
Number of Channels	1
Voltage - Isolation	7500Vrms
Common Mode Transient Immunity (Minimum)	40kV/μs
Propagation Delay tpLH / tpHL (Maximum)	500ns, 500ns
Pulse Width Distortion (Maximum)	300ns
Rise / Fall Time (Typ)	100ns, 100ns
Current - Output High, Low	2A, 2A
Current - Peak Output	2.5A
Voltage - Forward (Vf) (Typ)	1.6V
Current - DC Forward (If) (Maximum)	25mA
Operating Supply Voltage	15 V ~ 30 V
Operating Temperature Range	-40°C ~ 105°C
Mounting Style	Through Hole
Package	10-DIP (0.512", 13.01mm)
Manufacturer Package	10-DIP
Approvals	CSA, IEC/EN/DIN, UR
Win Source Part Number	766918-ACNV3130-000E
Popularity	Medium
Supply and Demand Status	Limited
Family Name	ACNV3130
Introduction Date	October 11, 2012
ECCN	EAR99
Country of Origin	Singapore, Thailand
Halogen Free	Not Compliant
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian ACNV3130-000E CAD Model

Description

The supply and demand status is limited.

Technology: Optical Coupling
Current - Output High, Low: 2A, 2A
Voltage - Isolation: 7500Vrms
Operating Supply Voltage: 15 V ~ 30 V
Rise/Fall Time (Typ): 100ns, 100ns
Win Source Part Number: 766918-ACNV3130-000E
