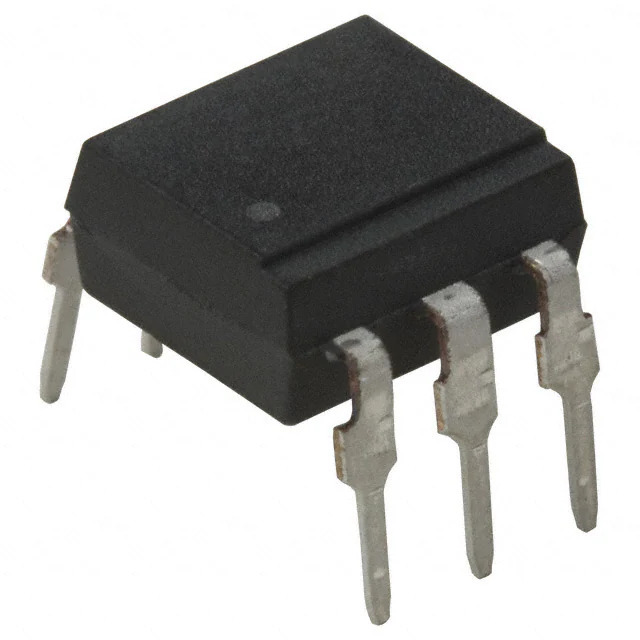

4N46-000E Broadcom Limited
Same model may have multiple batches, images only for reference.

4N46-000E

Part No 4N46-000E
Manufacturer Broadcom Limited
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV DARL W/BASE 6DIP
Datasheet
4N46-000E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Broadcom Limited
Series -
Package Tube
Product Status Active
Number of Channels 1
Voltage - Isolation 3750Vrms
Current Transfer Ratio (Min) 200% @ 10mA
Current Transfer Ratio (Max) 1000% @ 10mA
Turn On / Turn Off Time (Typ) 5µs, 150µs
Rise / Fall Time (Typ) -
Input Type DC
Output Type Darlington with Base
Voltage - Output (Max) 20V
Current - Output / Channel 60mA
Voltage - Forward (Vf) (Typ) 1.4V
Current - DC Forward (If) (Max) 20 mA
Vce Saturation (Max) -
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Base Product Number 4N46
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 1371594-4N46-000E
Ultra Librarian 3D Model Ultra Librarian 4N46-000E CAD Model

Description

The 4N46-000E is an optoisolator transistor with a photovoltaic output from Broadcom Limited.

  • Application: Isolators
  • Operating Temperature: -40°C to 85°C
  • Package: 6-DIP
  • Base Product Number: 4N46
  • Output Type: Darlington with base
  • Maximum Output Voltage: 20V
  • Current Transfer Ratio: 200% @ 10mA
  • Maximum Current Transfer Ratio: 1000% @ 10mA
  • Turn-On Time: 5μs
  • Turn-Off Time: 150μs
  • Voltage Isolation: 3750Vrms
  • Forward Voltage: 1.4V @ 20mA
  • Maximum Forward Current: 20mA
