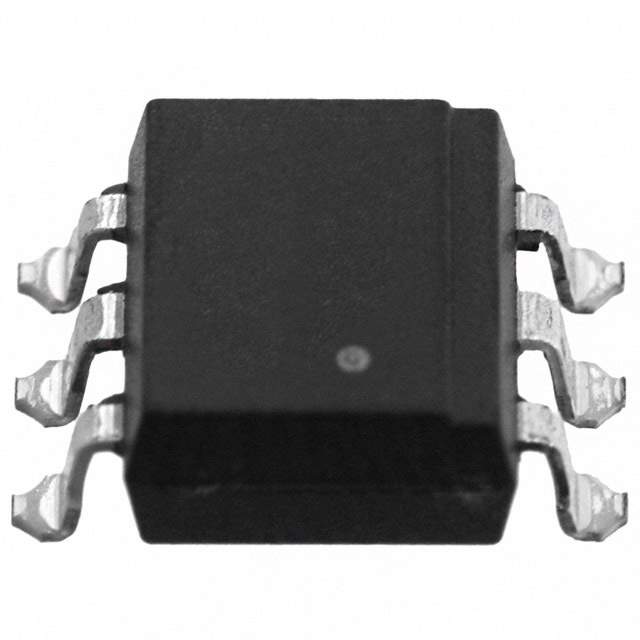

4N25-360E Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Broadcom Limited
Packaging Tube
Voltage - Isolation 2500Vrms
Current Transfer Ratio (Minimum) 20% at 10mA
Rise / Fall Time 3μs, 3μs
Input Type DC
Output Type Transistor with Base
Maximum Output Voltage 30V
Current - Output / Channel 100mA
Voltage - Forward (Vf) 1.2V
Current - DC Forward (If) (Maximum) 80mA
Vce Saturation (Maximum) 500mV
Temperature Range - Operating -55°C ~ 100°C
Mounting Style SMD
Manufacturer Package 6-SMD, Gull Wing
Supplier Device Package 6-SMD
Family Part Number 4N25
Manufacturer Pack Quantity 65
MSL Level 1 (Unlimited)
Win Source Part Number 751398-4N25-360E
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 4N25-360E CAD Model

Description

The 4N25-360E is an isolator manufactured by Broadcom Limited.

  • Win Source Part Number: 751398
  • Package: Tube
  • Mounting Style: SMD
  • Output Type: Transistor with Base
  • Input Type: DC
  • Current Output per Channel: 100mA
  • Voltage Isolation: 2500Vrms
  • Supply and Demand Status: Limited
  • Suitable for: Isolators
