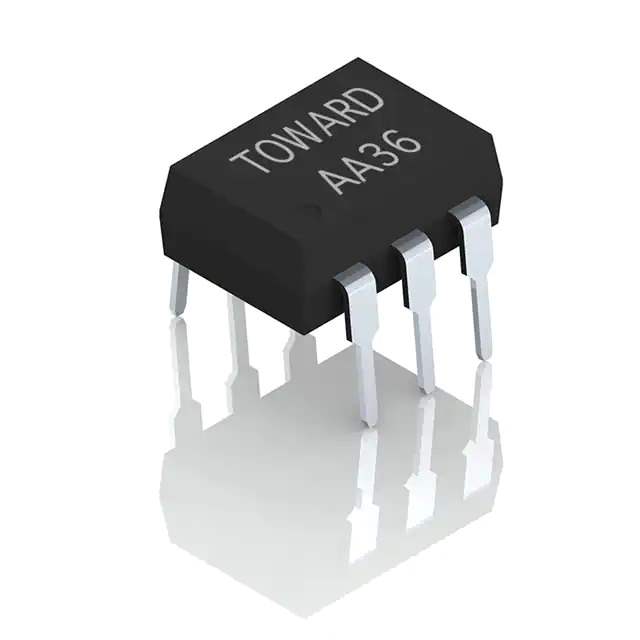

AA36 Real Image
Same model may have multiple batches, images only for reference.

AA36

Part No AA36
Manufacturer Bright Toward Industrial Co., Ltd.
Catalog Solid State Relays
Description SSR RELAY SPST-NO 2.5A 0-60V / Solid State SPST-NO (1 Form A) 6-DIP (0.300", 7.62mm)
Datasheet
AA36 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Bright Toward Industrial Co., Ltd.
Series 36
Package Tube
Product Status Active
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.37VDC
Voltage - Load 0 V ~ 60 V
Load Current 2.5 A
On-State Resistance (Max) 100 mOhms
Termination Style PC Pin
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 859125-AA36
Ultra Librarian 3D Model Ultra Librarian AA36 CAD Model

Description

The 859125-AA36 is a solid state relay from Bright Toward Industrial Co., Ltd..

  • Series: 36
  • Termination Style: PC Pin
  • Package: 6-DIP
  • Standard Package: 50 pieces
  • Input Voltage: 1.37VDC
  • Output Type: AC and DC
  • Circuit Configuration: SPST-NO (1 Form A)
  • Maximum On-State Resistance: 100 mOhms
  • Load Current: 2.5 A
  • Voltage Range (Load): 0 V to 60 V
  • Mounting Type: Through-Hole
