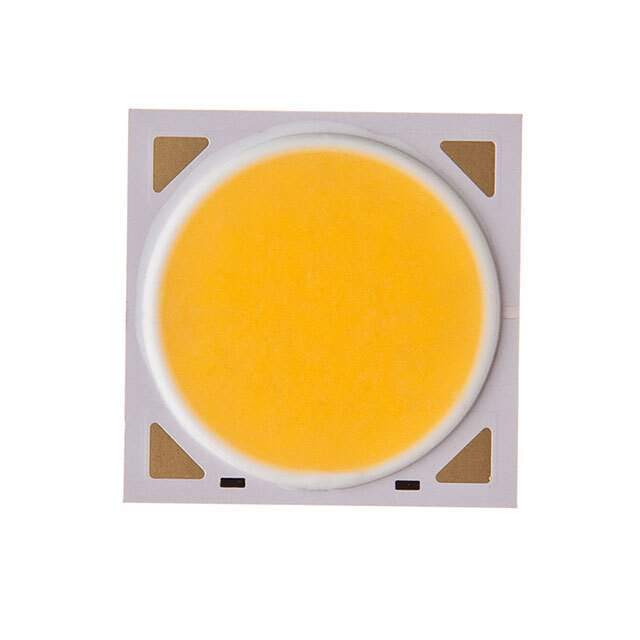

BXRE-50C2000-C-24 Real Image
Same model may have multiple batches, images only for reference.

BXRE-50C2000-C-24

Part No BXRE-50C2000-C-24
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARRAY 2000LM COOL WHITE COB / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Cool Square
Datasheet
BXRE-50C2000-C-24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Bridgelux
Series V13 Array
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K 4-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 2394lm (Typ)
Current - Test 500mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 32.3V
Lumens/Watt @ Current - Test 148 lm/W
Current - Max 1.05A
CRI (Color Rendering Index) 70
Viewing Angle 120°
Dimension 15.80mm L x 15.80mm W
Height 1.70mm
Light Emitting Surface (LES) 13.40mm Dia
Lens Type Flat
Base Product Number BXRE-50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 976-1322,BXRE-50C2000-C-24-ND
Standard Package 840
Win Source Part Number 1173105-BXRE-50C2000-C-24
Ultra Librarian 3D Model Ultra Librarian BXRE-50C2000-C-24 CAD Model

Description

The BXRE-50C2000-C-24 is a white, cool color chip on board (COB) LED with a viewing angle of 120° and a luminous flux of 2394lm (typ) @ a current of 500mA and a temperature of 25°C.

  • Color: White, Cool
  • Type: Chip on Board (COB)
  • Viewing Angle: 120°
  • Luminous Flux: 2394lm (typ) @ 500mA, 25°C
  • Current Rating: 1.05A
  • Voltage Rating: 32.3V
  • Packaging: Tray
  • Height: 1.70mm
  • Diameter: 13.40mm
  • Color Rendering Index (CRI): 70
  • Correlated Color Temperature (CCT): 5000K
  • MacAdam Ellipse Steps: 4-Step
