Same model may have multiple batches, images only for reference.

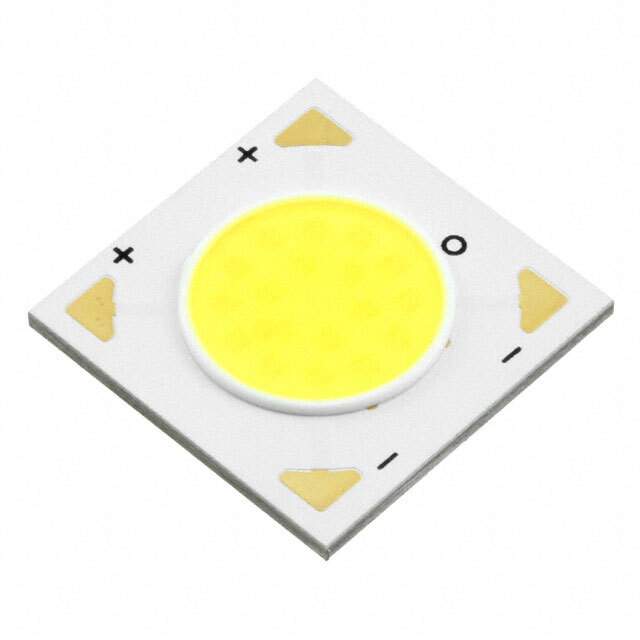

BXRE-40E1000-B-23 Real Image
Same model may have multiple batches, images only for reference.

BXRE-40E1000-B-23

Part No BXRE-40E1000-B-23
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARRAY 1000LM NEU WHITE COB / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Neutral Square
Datasheet
BXRE-40E1000-B-23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Bridgelux
Series V10 Array
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 1253lm (Typ)
Current - Test 350mA
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 26.5V
Lumens/Watt @ Current - Test 135 lm/W
Current - Max 700mA
CRI (Color Rendering Index) 80
Viewing Angle 120°
Dimension 15.80mm L x 15.80mm W
Height 1.70mm
Light Emitting Surface (LES) 9.90mm Dia
Lens Type Flat
Base Product Number BXRE-40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 976-1302
Standard Package 840
Win Source Part Number 1144218-BXRE-40E1000-B-23
Ultra Librarian 3D Model Ultra Librarian BXRE-40E1000-B-23 CAD Model

Description

The Bridgelux 1144218-BXRE-40E1000-B-23 electronic component is a part of the V10 Array series.

  • Type: Chip on Board (COB)
  • Color: White, Neutral
  • Viewing Angle: 120 degrees
  • Forward Voltage: 26.5V
  • Current-Max: 700mA
  • Configuration: Square
  • CCT: 4000K 3-Step MacAdam Ellipse
  • CRI: 80
  • Luminous Flux @ Current/Temperature: 1253lm (Typ)
  • Lumens/Watt @ Current-Test: 135 lm/W
  • Status: Obsolete
