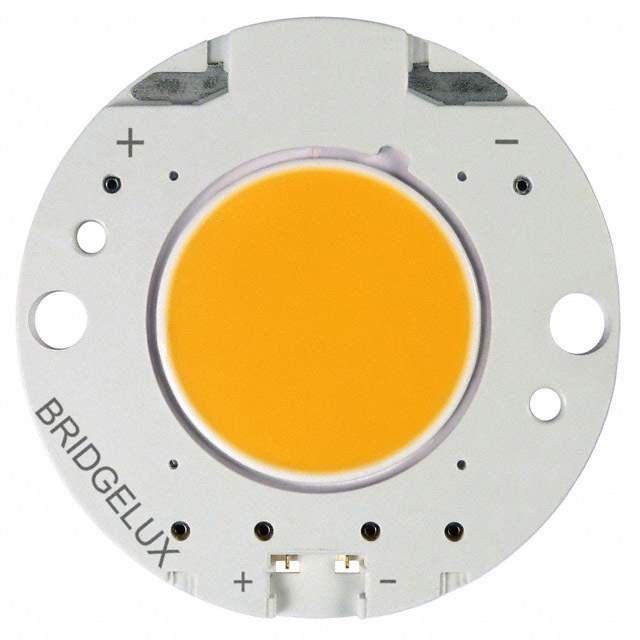

BXRC-30E4000-F-23 Real Image
Same model may have multiple batches, images only for reference.

BXRC-30E4000-F-23

Part No BXRC-30E4000-F-23
Manufacturer Bridgelux
Catalog LED Lighting - COBs, Engines, Modules
Description LED ARRAY 4000LM WARM WHITE COB / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Round
Datasheet
BXRC-30E4000-F-23 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Bridgelux
Series Vero® 18 Array
Package Tray
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 3000K 3-Step MacAdam Ellipse
Configuration Round
Luminous Flux @ Current/Temperature 4097lm (Typ)
Current - Test 1.05A
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 29.5V
Lumens/Watt @ Current - Test 132 lm/W
Current - Max 2.1A
CRI (Color Rendering Index) 80
Viewing Angle 120°
Features With Connector
Dimension 36.20mm Dia
Height 1.90mm
Light Emitting Surface (LES) 18.40mm Dia
Lens Type Flat
Base Product Number BXRC-30
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8539.52.0091
Other Names 976-1255
Standard Package 100
Win Source Part Number 1174533-BXRC-30E4000-F-23
Ultra Librarian 3D Model Ultra Librarian BXRC-30E4000-F-23 CAD Model

Description

The Bridgelux Vero® 18 Array is a Chip On Board (COB) type electronic component that is ideal for LED Lighting - COBs, Engines, Modules, Strips. The Bridgelux Vero® 18 Array is a Chip On Board (COB).

  • Type: Chip On Board (COB)
  • Configuration: Round
  • Lens Type: Flat
  • Viewing Angle: 120°
  • Forward Voltage (Vf): 29.5V (Typ)
  • Maximum Current: 2.1A
  • CCT (K): 3000K 3-Step MacAdam Ellipse
  • Color Rendering Index (CRI): 80
  • Light Emitting Surface (LES): 18.40mm Dia
  • Dimension: 36.20mm Dia
  • Package: Tray
  • Standard Package: 100
  • Product Status: Obsolete
  • Luminous Flux: 4097lm (Typ) @ Current/Temperature
