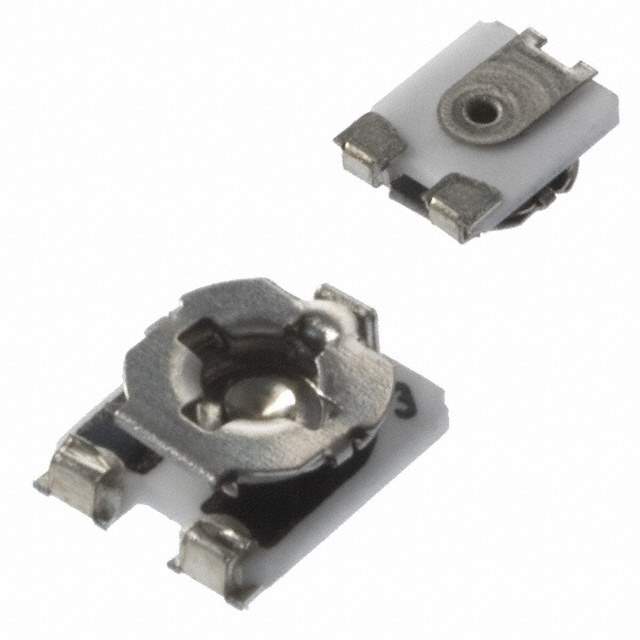

TC33X-2-504E Real Image
Same model may have multiple batches, images only for reference.

TC33X-2-504E

Part No TC33X-2-504E
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500K OHM 0.1W J LEAD TOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Reel
Resistance 500 kOhms
Power (Watts) 0.1W, 1/10W
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting Style SMD
Termination Style J Lead
Dimension Rectangular - 0.150" x 0.142" Face x 0.047" H (3.80mm x 3.60mm x 1.20mm)
Part Number Series TC33X
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802225-TC33X-2-504E
Ultra Librarian 3D Model Ultra Librarian TC33X-2-504E CAD Model

Description

The 802225-TC33X-2-504E resistor, manufactured by Bourns Inc., is a cermet-based component.

  • Adjustment: Top
  • Resistance: 500 kOhms
  • Tolerance: ±25%
  • Dimensions: 0.150" x 0.142" Face x 0.047" H (3.80mm x 3.60mm x 1.20mm)
  • Package Type: Reel
  • Manufacturer Pack Quantity: 2,500
