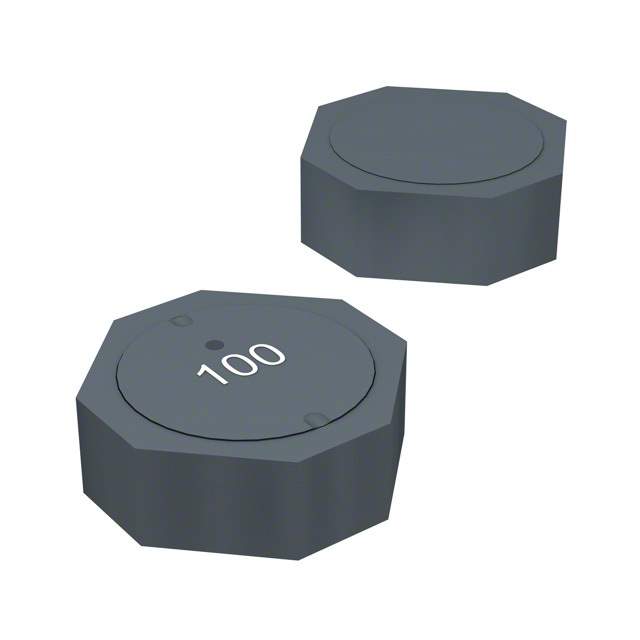

Same model may have multiple batches, images only for reference.

SRU5018-4R7Y

Name: SRU5018-4R7Y
Brand: Bourns Inc.
SKU: 1132512
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRU5018-4R7Y
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 2A 36 MOHM SMD / 4.7 µH Shielded Drum Core, Wirewound Inductor 2 A 36mOhm Nonstandard
Datasheet	SRU5018-4R7Y Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRU5018
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	4.7 µH
Tolerance	±30%
Current Rating (Amps)	2 A
Current - Saturation (Isat)	1.55A
Shielding	Shielded
DC Resistance (DCR)	36mOhm
Q @ Freq	8.5 @ 7.96MHz
Frequency - Self Resonant	80MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max)	0.079" (2.00mm)
Base Product Number	SRU5018
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SRU50184R7Y,SRU5018-4R7YCT,SRU5018-4R7YDKR,SRU5018-4R7YTR,SRU5018-4R7Y-ND
Standard Package	1,000
Win Source Part Number	1132512-SRU5018-4R7Y
Ultra Librarian 3D Model	Ultra Librarian SRU5018-4R7Y CAD Model

Alternative Products

Description

The SRU5018-4R7Y is a drum core, wirewound inductor with a shielded package.

Inductance: 4.7 µH
Tolerance: ±30%
Core Material: ferrite
DC Resistance (DCR): 36mOhm
Q @ Freq: 8.5 @ 7.96MHz
Frequency - Self Resonant: 80MHz
Mounting Type: SMD (SMT)
Package/Case: non-standard
Temperature Range: -40°C to 125°C
Height Seated: 0.079" (2.00mm)
Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
Current Rating (Amps): 2 A
Current - Saturation (Isat): 1.55A
Standard Package: 1,000
