Same model may have multiple batches, images only for reference.

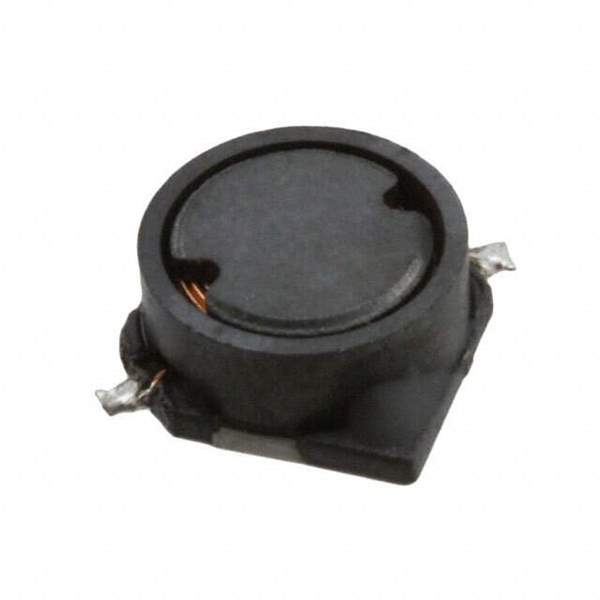

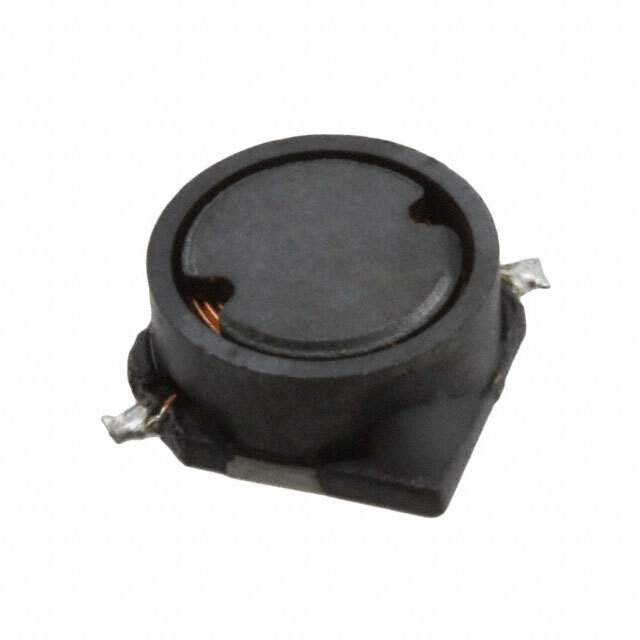

SRR7032-470M Real Image
Same model may have multiple batches, images only for reference.

SRR7032-470M

Part No SRR7032-470M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 47UH 670MA 280MOHM SMD / 47 µH Shielded Drum Core, Wirewound Inductor 670 mA 280mOhm Max Nonstandard
Datasheet
SRR7032-470M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR7032
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±20%
Current Rating (Amps) 670 mA
Current - Saturation (Isat) 770mA
Shielding Shielded
DC Resistance (DCR) 280mOhm Max
Q @ Freq 26 @ 2.52MHz
Frequency - Self Resonant 18MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.276" L x 0.276" W (7.00mm x 7.00mm)
Height - Seated (Max) 0.134" (3.40mm)
Base Product Number SRR7032
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names -SRR7032-470MCT,-SRR7032-470M-ND,SRR7032-470MDKR,SRR7032470M,-SRR7032-470M,SRR7032-470M-ND,-SRR7032-470MTR,SRR7032-470MCT,SRR7032-470MTR
Standard Package 1,500
Win Source Part Number 1028776-SRR7032-470M
Ultra Librarian 3D Model Ultra Librarian SRR7032-470M CAD Model

Description

The SRR7032-470M is a fixed inductor from Bourns Inc.

  • Type: Shielded drum core, wirewound
  • Tolerance: ±20%
  • Mounting Type: SMD (SMT)
  • Height: 0.134" (3.40mm)
  • Maximum Current: 670 mA
  • Inductance Frequency Test: 100 kHz
  • Q @ Freq: 26 @ 2.52MHz
  • Self-Resonant Frequency: 18MHz
