Same model may have multiple batches, images only for reference.

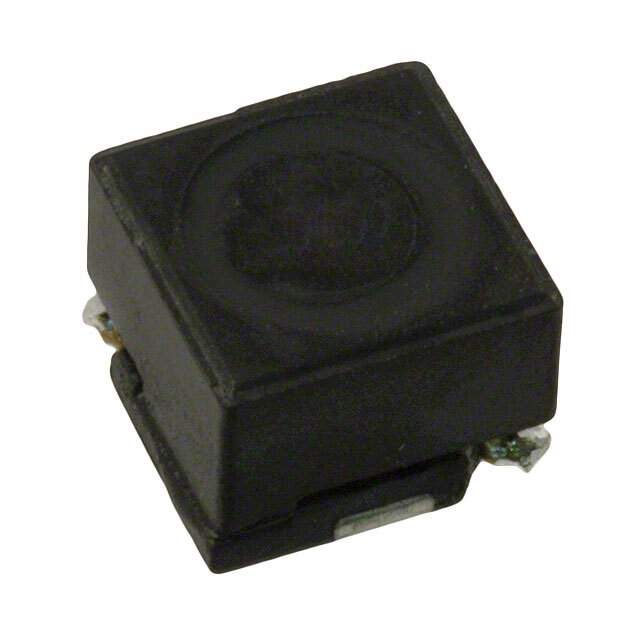

SRR0604-330KL Real Image
Same model may have multiple batches, images only for reference.

SRR0604-330KL

Part No SRR0604-330KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 33UH 700MA 250MOHM SMD / 33 µH Shielded Drum Core, Wirewound Inductor 700 mA 250mOhm Max Nonstandard, Corner Terminals
Datasheet
SRR0604-330KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0604
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 33 µH
Tolerance ±10%
Current Rating (Amps) 700 mA
Current - Saturation (Isat) 950mA
Shielding Shielded
DC Resistance (DCR) 250mOhm Max
Q @ Freq 16 @ 2.52MHz
Frequency - Self Resonant 21MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard, Corner Terminals
Dimension 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR0604
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names -SRR0604-330KLCT,SRR0604-330KLCT,Q9341766,-SRR0604-330KL,SRR0604330KL,-SRR0604-330KLTR,SRR0604-330KLDKR,SRR0604-330KLTR
Standard Package 1,000
Win Source Part Number 998996-SRR0604-330KL
Ultra Librarian 3D Model Ultra Librarian SRR0604-330KL CAD Model

Description

The SRR0604-330KL is a drum core, wirewound inductor that is shielded with a ferrite core material.

  • Inductance: 33 microhenries
  • Tolerance: ±10%
  • Maximum DC Resistance: 250 milliohms
  • Q @ Freq: 16 @ 2.52MHz
  • Frequency Self-Resonant: 21MHz
  • Package/Case: Nonstandard, Corner Terminal
  • Height Seated (Max): 0.189 inches (4.80mm)
  • Current Rating: 700mA
