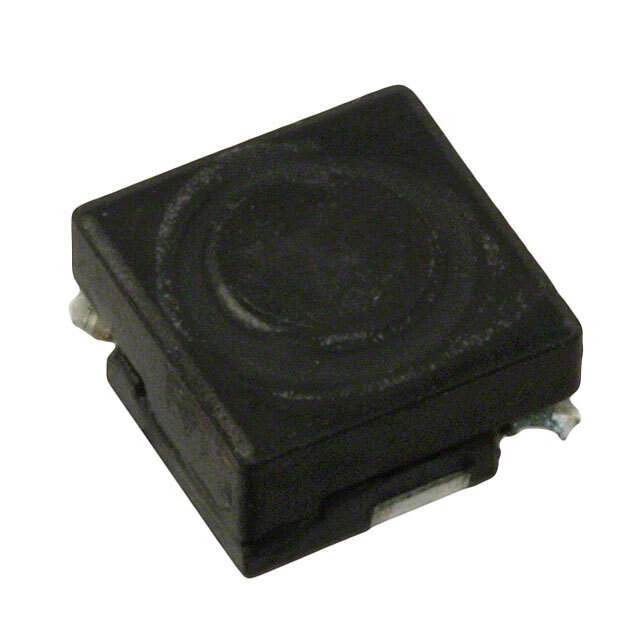

Same model may have multiple batches, images only for reference.

SRR0603-221KL

Name: SRR0603-221KL
Brand: Bourns Inc.
SKU: 994581
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SRR0603-221KL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 220UH 200MA 2.7OHM SMD / 220 µH Shielded Drum Core, Wirewound Inductor 200 mA 2.7Ohm Max Nonstandard, Corner Terminals
Datasheet	SRR0603-221KL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRR0603
Package	Tape & Reel (TR),Cut Tape (CT)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	220 µH
Tolerance	±10%
Current Rating (Amps)	200 mA
Current - Saturation (Isat)	310mA
Shielding	Shielded
DC Resistance (DCR)	2.7Ohm Max
Q @ Freq	20 @ 796kHz
Frequency - Self Resonant	5MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard, Corner Terminals
Dimension	0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max)	0.130" (3.30mm)
Base Product Number	SRR0603
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	-SRR0603-221KLTR,SRR0603-221KLTR,-SRR0603-221KLCT,SRR0603221KL,-SRR0603-221KL,SRR0603-221KLCT
Standard Package	1,000
Win Source Part Number	994581-SRR0603-221KL
Ultra Librarian 3D Model	Ultra Librarian SRR0603-221KL CAD Model

Alternative Products

Description

The Bourns Inc. SRR0603-221KL is a drum core, wirewound inductor with a shielded package.

Manufacturer: Bourns Inc.
Product: SRR0603-221KL
Core Material: Ferrite
Inductance: 220 µH
Tolerance: ±10%
DC Resistance: 2.7 Ohm max
Q Factor: 20 @ 796 kHz
Self Resonant Frequency: 5 MHz
Package/Case: Non-standard
Packaging: Tape & reel (TR) or cut tape (CT)
Height: 0.130" (3.30mm)
Dimension: 0.256" L x 0.256" W (6.50mm x 6.50mm)
Current Rating: 200 mA
Operating Temperature: -40°C ~ 125°C
