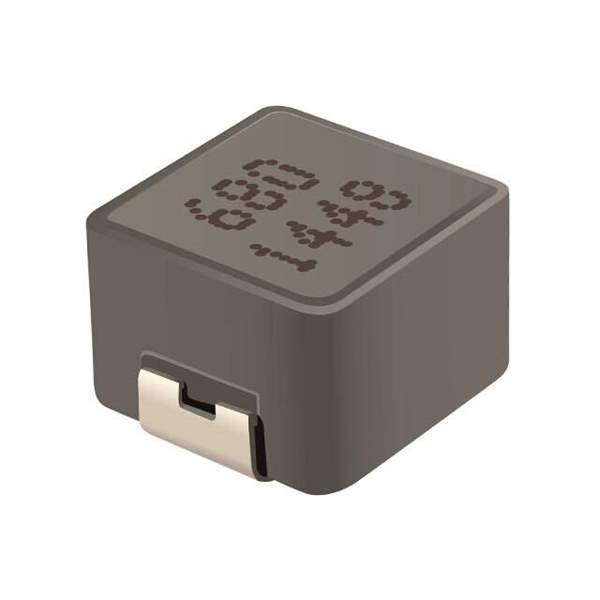

SRP7050TA-1R0M Real Image
Same model may have multiple batches, images only for reference.

SRP7050TA-1R0M

Part No SRP7050TA-1R0M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 1UH 15A 6.5 MOHM SMD / 1 µH Shielded Drum Core, Wirewound Inductor 15 A 6.5mOhm Max Nonstandard
Datasheet
SRP7050TA-1R0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP7050TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 15 A
Current - Saturation (Isat) 20A
Shielding Shielded
DC Resistance (DCR) 6.5mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 50MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max) 0.197" (5.00mm)
Base Product Number SRP7050TA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP7050TA-1R0MDKR,SRP7050TA-1R0MTR,SRP7050TA-1R0MCT
Standard Package 800
Win Source Part Number 1134214-SRP7050TA-1R0M
Ultra Librarian 3D Model Ultra Librarian SRP7050TA-1R0M CAD Model

Description

The Bourns SRP7050TA-1R0M is a drum core, wirewound type of inductor that comes in a tape and reel package.

  • Type: Drum core, wirewound
  • Package: Tape and reel
  • Shielded: Yes
  • Inductance: 1 µH
  • Tolerance: ±20%
  • DC Resistance: 6.5mOhm Max
  • Current Rating: 15 A
  • Q @ Freq: 10 @ 100kHz
  • Self-Resonant Frequency: 50MHz
  • Material: Carbonyl powder
  • Dimension: 0.287" L x 0.260" W (7.30mm x 6.60mm)
  • AEC-Q200 Rated: Yes
  • Operating Temperature: -40°C ~ 150°C
  • Alternative Part: SRP7050TA1R0M
