Same model may have multiple batches, images only for reference.

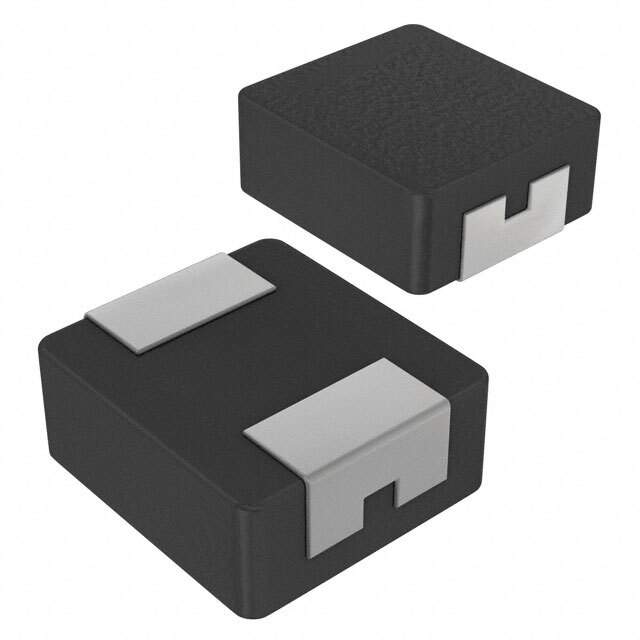

SRP4020TA-1R5M Real Image
Same model may have multiple batches, images only for reference.

SRP4020TA-1R5M

Part No SRP4020TA-1R5M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 1.5UH 4.5A 42 MOHM SMD / 1.5 µH Shielded Drum Core, Wirewound Inductor 4.5 A 42mOhm Max 2-SMD
Datasheet
SRP4020TA-1R5M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP4020TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 1.5 µH
Tolerance ±20%
Current Rating (Amps) 4.5 A
Current - Saturation (Isat) 7A
Shielding Shielded
DC Resistance (DCR) 42mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 62MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRP4020TA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP4020TA-1R5MDKR,SRP4020TA-1R5MTR,SRP4020TA-1R5MCT
Standard Package 3,000
Win Source Part Number 984729-SRP4020TA-1R5M
Ultra Librarian 3D Model Ultra Librarian SRP4020TA-1R5M CAD Model

Description

The Bourns Inc. part number SRP4020TA-1R5M is a fixed inductor that belongs to the SRP4020TA series.

  • Series: SRP4020TA
  • Type: Drum core, wirewound
  • Package: Tape and reel
  • Shielded: Yes
  • Inductance: 1.5 µH
  • Seated Height: 0.079 inches (2.00mm)
  • Standard Package: 3,000
  • Tolerance: ±20%
  • AEC-Q200: Yes
  • Material Core: Carbonyl Powder
  • Q @ Freq: 10 @ 100kHz
  • Self-Resonant Frequency: 62MHz
  • Package/Case: 2-SMD
  • DC Resistance (DCR): 42mOhm Max
  • Current Rating: 4.5A
  • Operating Temperature: -40°C to 150°C
  • Dimensions: 0.175 inches (4.45mm) in length and 0.160 inches (4.06mm) in width
  • ECCN: EAR99
  • HTSUS: 8504.50.4000
