Same model may have multiple batches, images only for reference.

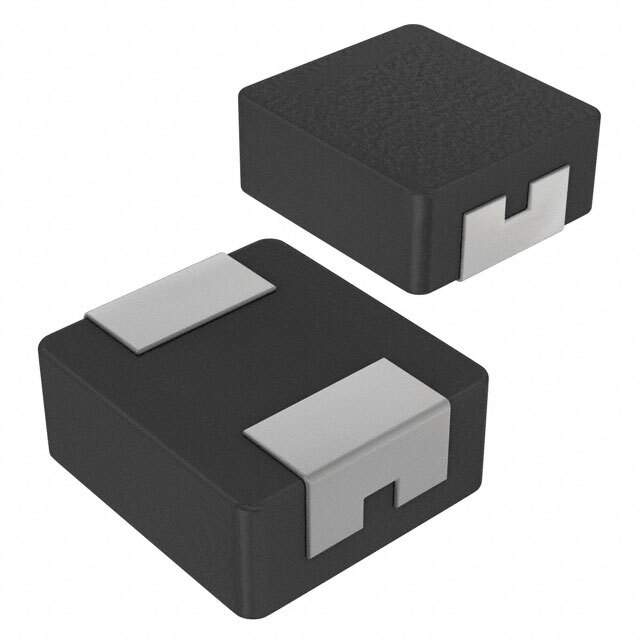

SRP4020TA-100M Real Image
Same model may have multiple batches, images only for reference.

SRP4020TA-100M

Part No SRP4020TA-100M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 10UH 1.8A 243 MOHM SMD / 10 µH Shielded Drum Core, Wirewound Inductor 1.8 A 243mOhm Max 2-SMD
Datasheet
SRP4020TA-100M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP4020TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 10 µH
Tolerance ±20%
Current Rating (Amps) 1.8 A
Current - Saturation (Isat) 2.3A
Shielding Shielded
DC Resistance (DCR) 243mOhm Max
Q @ Freq 10 @ 100kHz
Frequency - Self Resonant 19MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max) 0.079" (2.00mm)
Base Product Number SRP4020TA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP4020TA-100MCT,SRP4020TA-100MDKR,SRP4020TA-100MTR
Standard Package 3,000
Win Source Part Number 963859-SRP4020TA-100M
Ultra Librarian 3D Model Ultra Librarian SRP4020TA-100M CAD Model

Description

The SRP4020TA-100M is a fixed inductor manufactured by Bourns Inc.

  • Supply and Demand: Balanced
  • Inductor Type: Shielded drum core
  • Inductance: 10μH
  • Tolerance: ±20%
  • DC Resistance: 243mOhm max
  • Self-Resonant Frequency: 19MHz
  • Current Rating: 1.8A
  • Height: 2.00mm
