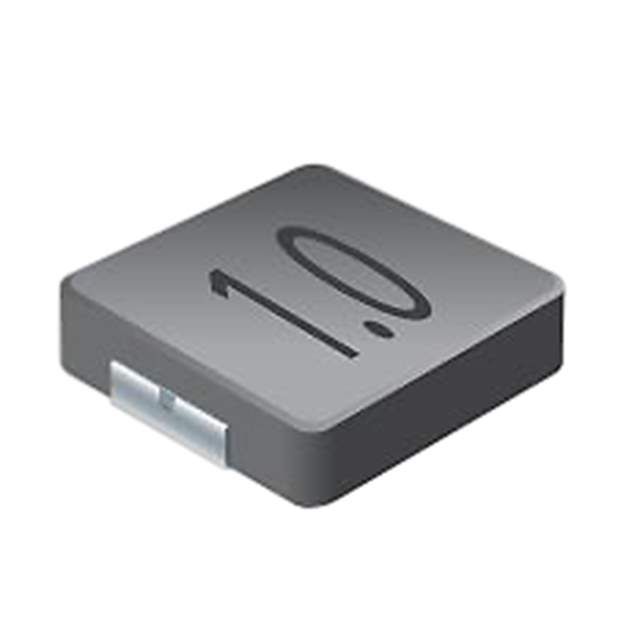

SRP3012TA-R56M Real Image
Same model may have multiple batches, images only for reference.

SRP3012TA-R56M

Part No SRP3012TA-R56M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 560NH 4.5A 36 MOHM SMD / 560 nH Shielded Drum Core, Wirewound Inductor 4.5 A 36mOhm Max 2-SMD
Datasheet
SRP3012TA-R56M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP3012TA
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 560 nH
Tolerance ±20%
Current Rating (Amps) 4.5 A
Current - Saturation (Isat) 6.6A
Shielding Shielded
DC Resistance (DCR) 36mOhm Max
Frequency - Self Resonant 90MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case 2-SMD
Supplier Device Package 2-SMD
Dimension 0.138" L x 0.126" W (3.50mm x 3.20mm)
Height - Seated (Max) 0.047" (1.20mm)
Base Product Number SRP3012TA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP3012TA-R56MDKR,SRP3012TA-R56MCT,SRP3012TA-R56MTR
Standard Package 4,000
Win Source Part Number 1088905-SRP3012TA-R56M
Ultra Librarian 3D Model Ultra Librarian SRP3012TA-R56M CAD Model

Description

The Bourns Inc. 1088905-SRP3012TA-R56M is a drum core, wirewound inductor with a carbonyl powder core that has an inductance of 560 nH and a tolerance of ±20%.

  • Shielding: Has shielding
  • Current Saturation: 6.6A
  • DC Resistance (DCR): 36mOhm max
  • Temperature Range: -40°C to 150°C
  • Package: 2-SMD
  • Series: SRP3012TA series
  • Application: Inductors, Coils, and Chokes
  • Popularity: Medium
