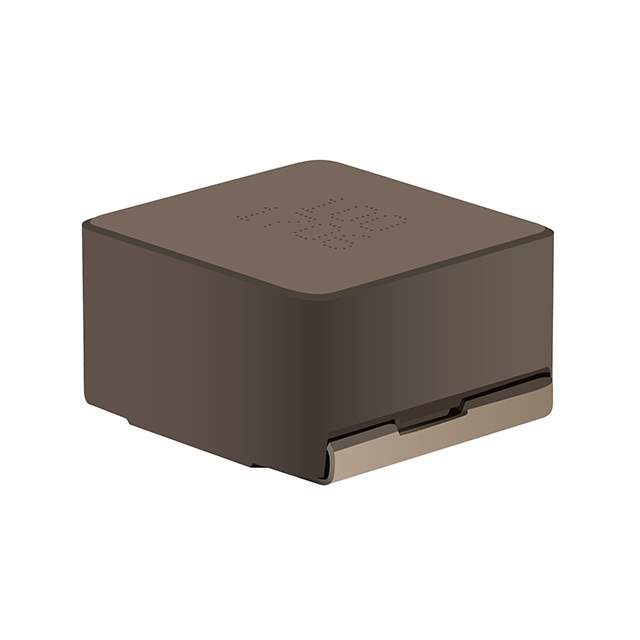

The SRP2313AA-1R5M is a shielded power inductor manufactured by Bourns Inc. This inductor is designed for high-current power supply applications. It offers very low DC resistance and high efficiency, making it ideal for use in DC-DC converters and voltage regulators where minimizing power loss is critical.

Applications

• DC-DC converters
• Voltage regulators
• Power amplifiers
• Filtering circuits
• High current power supplies

Features

• Shielded construction
• High current capacity
• Very low DC resistance
• Magnetically shielded
• Surface mount device
• RoHS compliant

Benefits

• Provides high efficiency in power applications.
• Reduces power losses significantly.
• Minimizes electromagnetic interference (EMI).
• Offers stable inductance over a wide temperature range.
• Facilitates easy assembly.

Additional Details

The SRP2313AA-1R5M features an inductance of 1.5 µH, with a tolerance of ±20%. It has a saturation current of 33A and a low DC resistance of 0.75 mΩ (milliohms). The inductor is housed in a 23 x 23 mm package. This shielded power inductor is optimized for applications requiring high efficiency and minimal EMI. Its low DC resistance significantly reduces power losses, making it suitable for use in demanding power applications where energy efficiency is a primary concern. The magnetic shielding further reduces EMI, ensuring stable and reliable performance in sensitive electronic circuits. This is a good choice for modern high current power designs.
