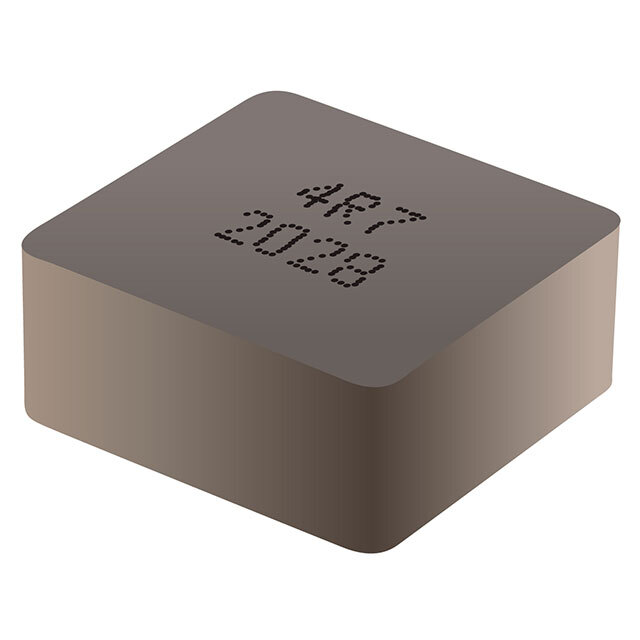

Same model may have multiple batches, images only for reference.

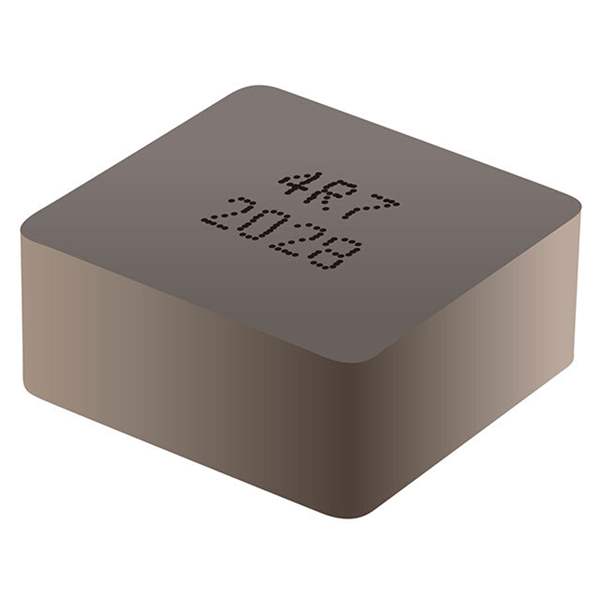

SRP1580CA-5R3M Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SRP1580CA-5R3M

Part No SRP1580CA-5R3M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description IND,16.5X15.5X7.7MM,5.3UH20%,26A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, ChokesFixed Inductors
Mfr Bourns Inc.
Series SRP1580CA
Part Status Active
Material - Core Metal
Inductance 5.3 μH
Tolerance ±20%
Current Rating (Amps) 26 A
Current - Saturation (Isat) 35A
Shielding Shielded
DC Resistance (DCR) 5.34mOhm Max
Q @ Freq 30 @ 100kHz
Frequency - Self Resonant 12MHz
Ratings AEC-Q200
Operating Temperature -55°C ~ 155°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.650" L x 0.610" W (16.50mm x 15.50mm)
Height - Seated (Max) 0.315" (8.00mm)
Ultra Librarian 3D Model Ultra Librarian SRP1580CA-5R3M CAD Model
