Same model may have multiple batches, images only for reference.

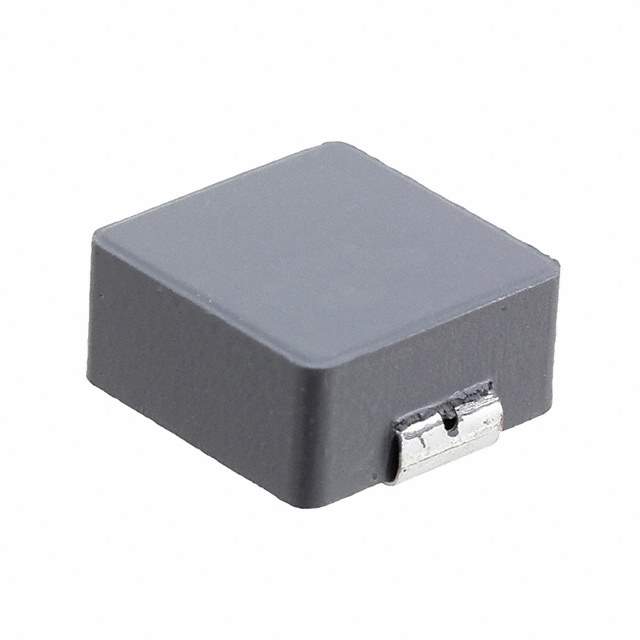

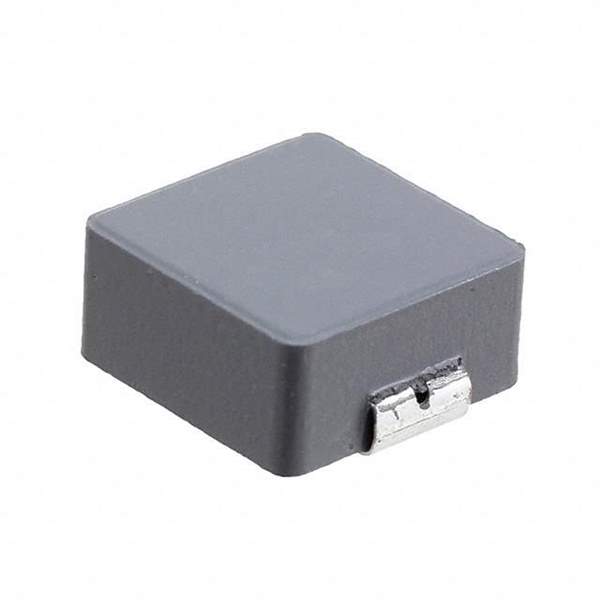

SRP1265A-6R8M Real Image
Same model may have multiple batches, images only for reference.

SRP1265A-6R8M

Part No SRP1265A-6R8M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 6.8UH 11.5A 11.5 MOHM / Inductor Power Shielded Wirewound 6.8uH 20% 100KHz 20Q-Factor Carbonyl Powder 11.5A 0.0115Ohm DCR Automotive T/R
Datasheet
SRP1265A-6R8M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Series SRP1265A
Packaging Reel package
Type Wirewound
Material - Core Carbonyl Powder
Inductance 6.8μH
Tolerance ±20%
Current Rating 11.5A
Current - Saturation 18A
Shielding Shielded
DC Resistance (DCR) 11.5 mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 13MHz
Ratings AEC-Q200
Operating Temperature Range -40°C ~ 150°C
Test Frequency 100kHz
Mounting SMD
Package Nonstandard
Dimension 0.531" L x 0.492" W (13.50mm x 12.50mm)
Height - Seated (Maximum) 0.252" (6.40mm)
Win Source Part Number 795412-SRP1265A-6R8M
Popularity Medium
Supply and Demand Status Limited
Family Name SRP1265A
Introduction Date May 06, 2014
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian SRP1265A-6R8M CAD Model

Description

The SRP1265A-6R8M is a shielded wirewound inductor from Bourns Inc.

  • Series: SRP1265A
  • Operating Temperature: -40°C to 150°C
  • Inductance: 6.8μH
  • Current Rating: 11.5A
  • Current Saturation: 18A
  • Q Value: 20 @ 100kHz
  • Self-Resonant Frequency: 13MHz
  • Tolerance: ±20%
  • AEC-Q200 Rated: Yes
  • Mounting: SMD
  • Dimension: 0.531" L x 0.492" W (13.50mm x 12.50mm)
  • Height: 0.252" (6.40mm)
  • DCR: 11.5 mOhm Max
  • Country of Origin: Taiwan
  • Halogen-free: Yes
  • Supply and Demand Status: limited
  • Estimated EOL Date: 2030
