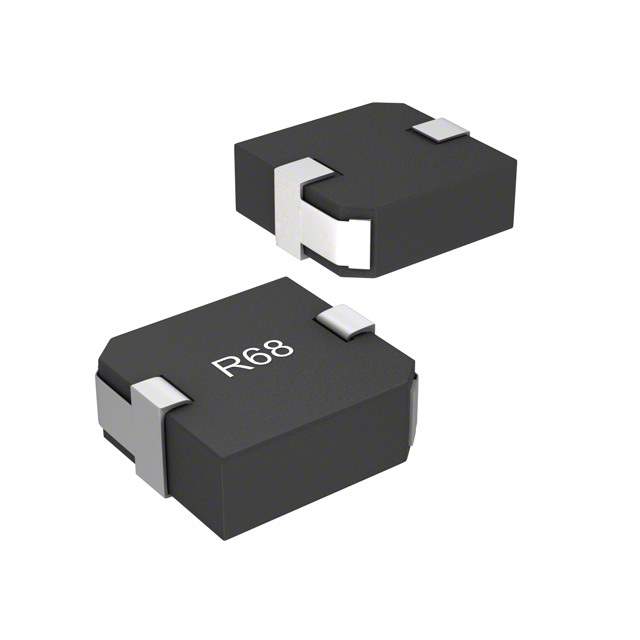

SRP1040-R47M Real Image
Same model may have multiple batches, images only for reference.

SRP1040-R47M

Part No SRP1040-R47M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 470NH 26A 1.6 MOHM SMD / 470 nH Shielded Inductor 26 A 1.6mOhm Max Nonstandard
Datasheet
SRP1040-R47M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1040
Package Tape & Reel
Product Status Obsolete
Material - Core Iron
Inductance 470 nH
Tolerance ±20%
Current Rating (Amps) 26 A
Current - Saturation (Isat) 38A
Shielding Shielded
DC Resistance (DCR) 1.6mOhm Max
Temperature Range - Operating -55°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.465" L x 0.413" W (11.80mm x 10.50mm)
Height - Seated (Max) 0.165" (4.20mm)
Base Product Number SRP1040
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP1040-R47MCT,-SRP1040-R47M,SRP1040-R47M-ND,-SRP1040-R47MTR,-SRP1040-R47MCT,SRP1040-R47MTR,-SRP1040-R47M-ND,SRP1040R47M,SRP1040-R47MDKR
Standard Package 900
Win Source Part Number 999134-SRP1040-R47M
Ultra Librarian 3D Model Ultra Librarian SRP1040-R47M CAD Model

Description

The Bourns Inc. SRP1040-R47M is a fixed inductor that belongs to the SRP1040 series.

  • Shielding: Shielded
  • Inductance: 470 nH
  • Height - Seated (Max): 0.165" (4.20mm)
  • Standard Package: 900
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: Iron
  • DC Resistance (DCR): 1.6mOhm Max.
  • Operating Temperature: -55°C ~ 150°C
  • Size / Dimension: 0.465" L x 0.413" W (11.80mm x 10.50mm)
