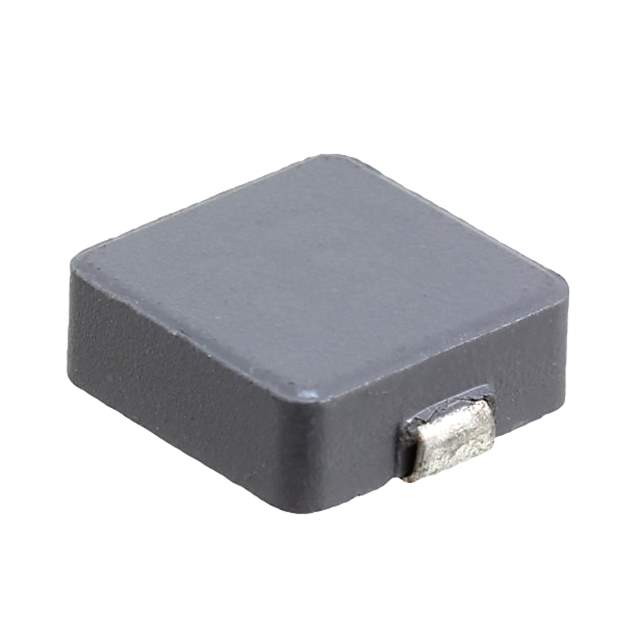

SRP1038A-8R2M Real Image
Same model may have multiple batches, images only for reference.

SRP1038A-8R2M

Part No SRP1038A-8R2M
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 8.2UH 8A 24 MOHM SMD / 8.2 µH Shielded Drum Core, Wirewound Inductor 8 A 24mOhm Max Nonstandard
Datasheet
SRP1038A-8R2M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRP1038A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Carbonyl Powder
Inductance 8.2 µH
Tolerance ±20%
Current Rating (Amps) 8 A
Current - Saturation (Isat) 12.5A
Shielding Shielded
DC Resistance (DCR) 24mOhm Max
Q @ Freq 20 @ 100kHz
Frequency - Self Resonant 12MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.433" L x 0.394" W (11.00mm x 10.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Base Product Number SRP1038A
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRP1038A-8R2MDKR,SRP1038A-8R2MCT,SRP1038A-8R2MTR
Standard Package 500
Win Source Part Number 1132587-SRP1038A-8R2M
Ultra Librarian 3D Model Ultra Librarian SRP1038A-8R2M CAD Model

Description

The SRP1038A-8R2M is an electronic component manufactured by Bourns Inc.

  • Type: Fixed Inductor
  • Inductance: 8.2 µH
  • Current Rating: 8 A
  • Tolerance: ±20%
  • Frequency Self-Resonant: 12MHz
  • Suitable for: Various applications that require high inductance
  • Mounting: Shielded Surface-Mount
  • Height: 0.157" (4.00mm)
  • Dimension: 0.433" L x 0.394" W (11.00mm x 10.00mm)
  • Temperature Range: -40°C ~ 150°C
  • Rating: AEC-Q200
