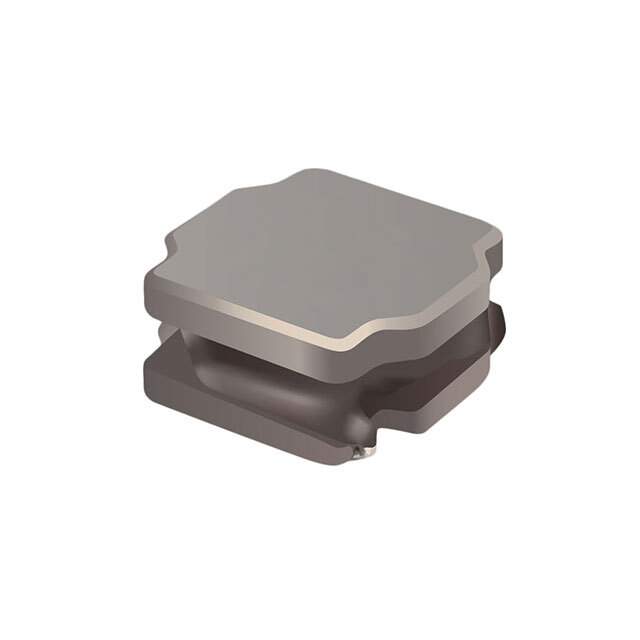

Same model may have multiple batches, images only for reference.

SRN8040TA-101M

Name: SRN8040TA-101M
Brand: Bourns Inc.
SKU: 1034201
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SRN8040TA-101M
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 100UH 1.2A 300MOHM SMD / 100 µH Semi-Shielded Drum Core, Wirewound Inductor 1.2 A 300mOhm Nonstandard
Datasheet	SRN8040TA-101M Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	SRN8040TA
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	100 µH
Tolerance	±20%
Current Rating (Amps)	1.2 A
Current - Saturation (Isat)	1.45A
Shielding	Semi-Shielded
DC Resistance (DCR)	300mOhm
Q @ Freq	10 @ 1MHz
Frequency - Self Resonant	8MHz
Ratings	AEC-Q200
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max)	0.177" (4.50mm)
Base Product Number	SRN8040TA
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SRN8040TA-101MDKR,SRN8040TA-101MCT,SRN8040TA-101MTR
Standard Package	1,000
Win Source Part Number	1034201-SRN8040TA-101M
Ultra Librarian 3D Model	Ultra Librarian SRN8040TA-101M CAD Model

Alternative Products

Description

The Bourns Inc. SRN8040TA series inductor is a drum core, wirewound type inductor with an inductance of 100 µH and a tolerance of ±20%.

Inductor Type: Drum Core, Wirewound
Inductance: 100 µH
Tolerance: ±20%
Core Material: Ferrite
Q @ Freq: 10 @ 1MHz
DC Resistance (DCR): 300mOhm
Current Rating (Amps): 1.2 A
Frequency - Self Resonant: 8MHz
Temperature Range: -55°C to 125°C
Package/Case: Nonstandard
Dimension: 0.315" L x 0.315" W (8.00mm x 8.00mm)
Packaging: Tape and Reel
