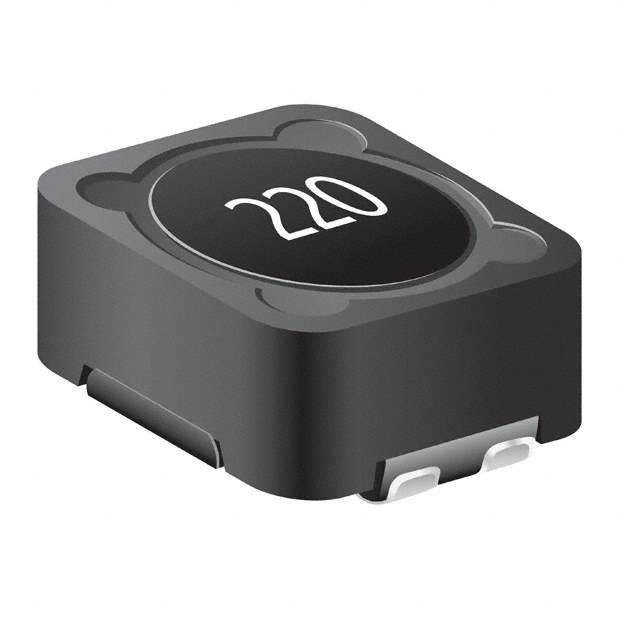

SRF1260-220M Real Image
Same model may have multiple batches, images only for reference.

SRF1260-220M

Part No SRF1260-220M
Manufacturer Bourns Inc.
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 22UH SMD / Shielded 2 Coil Inductor Array 88 µH Inductance - Connected in Series 22 µH Inductance - Connected in Parallel 45.1mOhm Max DC Resistance (DCR) - Parallel 3.7 A Nonstandard
Datasheet
SRF1260-220M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Bourns Inc.
Series SRF1260
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 22 µH
Inductance - Connected In Series 88 µH
Tolerance ±20%
Current Rating - Parallel 3.7 A
Current Rating - Series 1.84 A
Current Saturation - Parallel 4.71 A
Current Saturation - Series 2.36 A
DC Resistance (DCR) - Parallel 45.1mOhm Max
DC Resistance (DCR) - Series 172mOhm Max
Shielding Shielded
Temperature Range - Operating -40°C ~ 125°C
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.244" (6.20mm)
Base Product Number SRF1260
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SRF1260-220MDKR,SRF1260-220MCT,SRF1260-220MTR,SRF1260220M
Standard Package 400
Win Source Part Number 1178522-SRF1260-220M
Ultra Librarian 3D Model Ultra Librarian SRF1260-220M CAD Model

Description

The Bourns Inc. SRF1260-220M is an array signal transformer from Bourns Inc.

  • Series: SRF1260
  • Type: Shielded
  • Package/Case: Nonstandard
  • Height: 0.244" (6.20mm)
  • Coils: 2
  • Inductance - Series: 88 µH
  • Inductance - Parallel: 22 µH
  • Current Rating - Parallel: 3.7 A
  • Current Rating - Series: 1.84 A
  • Current Saturation - Parallel: 4.71 A
  • Current Saturation - Series: 2.36 A
  • DCR - Parallel: 45.1mOhm Max
  • DCR - Series: 172mOhm Max
  • Operating Temperature: -40°C ~ 125°C
