Same model may have multiple batches, images only for reference.

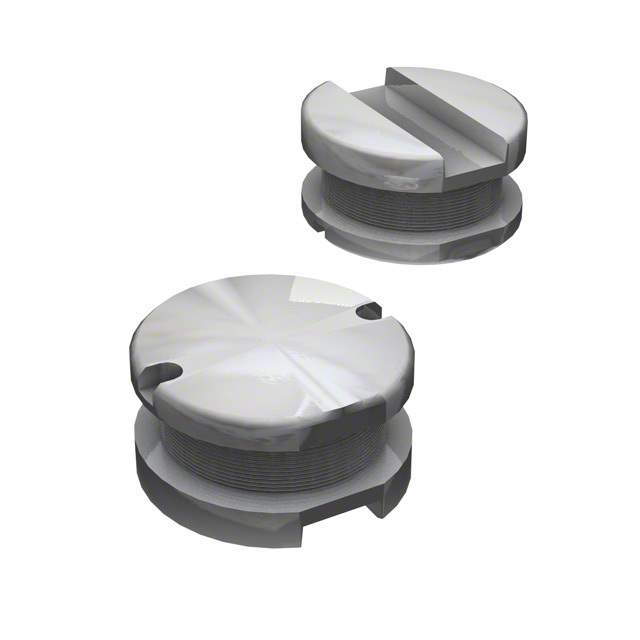

SDR1307-220ML Real Image
Same model may have multiple batches, images only for reference.

SDR1307-220ML

Part No SDR1307-220ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 22UH 3.6A 47 MOHM SMD
Datasheet
SDR1307-220ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Bourns Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 22μH
Tolerance ±20%
Current Rating 3.6A
Current - Saturation 6.5A
DC Resistance (DCR) 47 mOhm Max
Q @ Freq 40 @ 2.52MHz
Frequency - Self Resonant 15MHz
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.287" (7.30mm)
Win Source Part Number 1095096-SDR1307-220ML
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SDR1307-220ML CAD Model

Description

The Bourns Inc. SDR1307-220ML is a wirewound inductor with a current rating of 3.6A and an inductance of 22μH.

  • Inductor Type: Wirewound
  • Current Rating: 3.6A
  • Inductance: 22μH
  • Height: 0.287" (7.30mm)
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: Ferrite
  • Saturation Current: 6.5A
  • Q @ Freq: 40 @ 2.52MHz
  • Self-Resonant Frequency: 15MHz
  • DC Resistance (DCR): 47 mOhm Max
  • Operating Temperature: -40°C to 125°C
  • Applications: Inductors, Coils, and Chokes
  • Packaging: Reel
  • Popularity: Yes
