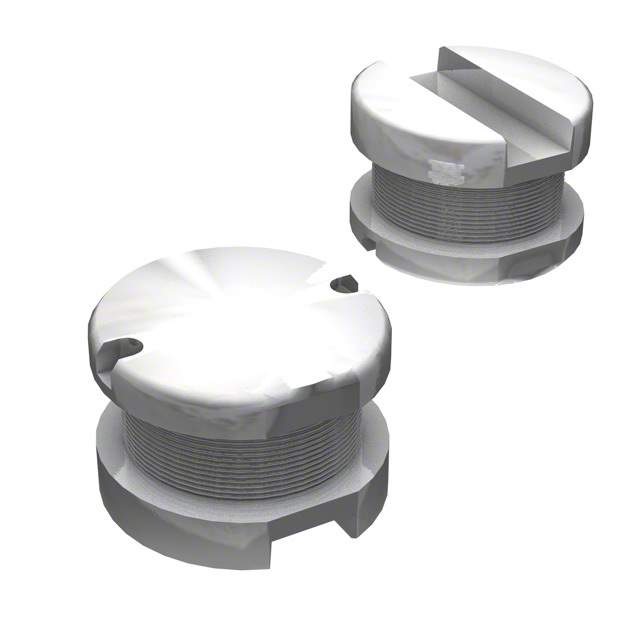

SDR0805-561KL Real Image
Same model may have multiple batches, images only for reference.

SDR0805-561KL

Part No SDR0805-561KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 560UH 300MA 2.5OHM SMD / 560 µH Unshielded Drum Core, Wirewound Inductor 300 mA 2.5Ohm Max Nonstandard
Datasheet
SDR0805-561KL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR0805
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 560 µH
Tolerance ±10%
Current Rating (Amps) 300 mA
Current - Saturation (Isat) 460mA
Shielding Unshielded
DC Resistance (DCR) 2.5Ohm Max
Q @ Freq 30 @ 796kHz
Frequency - Self Resonant 4MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.307" L x 0.307" W (7.80mm x 7.80mm)
Height - Seated (Max) 0.209" (5.30mm)
Base Product Number SDR0805
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names SDR0805-561KLDKR,SDR0805-561KLTR,SDR0805561KL,SDR0805-561KLCT,SDR0805-561KL-ND
Standard Package 1,000
Win Source Part Number 1165132-SDR0805-561KL
Ultra Librarian 3D Model Ultra Librarian SDR0805-561KL CAD Model

Description

The SDR0805-561KL from Bourns Inc. is a fixed inductor that belongs to the drum core, wirewound type of inductors.

  • Height-Seated Maximum: 5.30mm
  • Standard Package: 1,000
  • Q @ Freq: 30 @ 796kHz
  • Frequency Self-Resonant: 4MHz
  • Package: Non-standard
  • DC Resistance (DCR): 2.5Ohm Max
  • Temperature Range: -40°C to 125°C
  • Alternative Part: SDR0805-561KL
