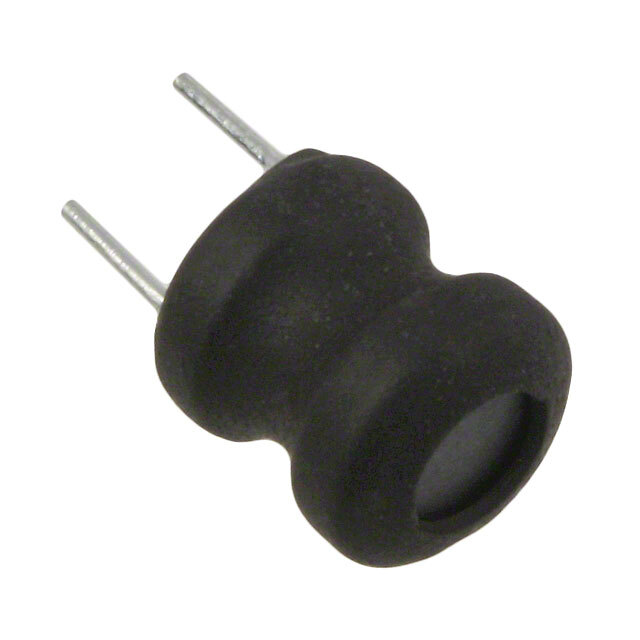

RLB1314-153KL

Part No RLB1314-153KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 15MH 82MA 15 OHM TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 mH
Tolerance ±10%
Current Rating (Amps) 82 mA
Shielding Unshielded
DC Resistance (DCR) 15Ohm Max
Q @ Freq 70 @ 79.6kHz
Frequency - Self Resonant 410kHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting Type Through Hole
Case / Package Radial, Vertical Cylinder
Size / Dimension 0.461" Dia (11.70mm)
Height - Seated (Max) 0.512\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1533135-RLB1314-153KL
Ultra Librarian 3D Model Ultra Librarian RLB1314-153KL CAD Model
