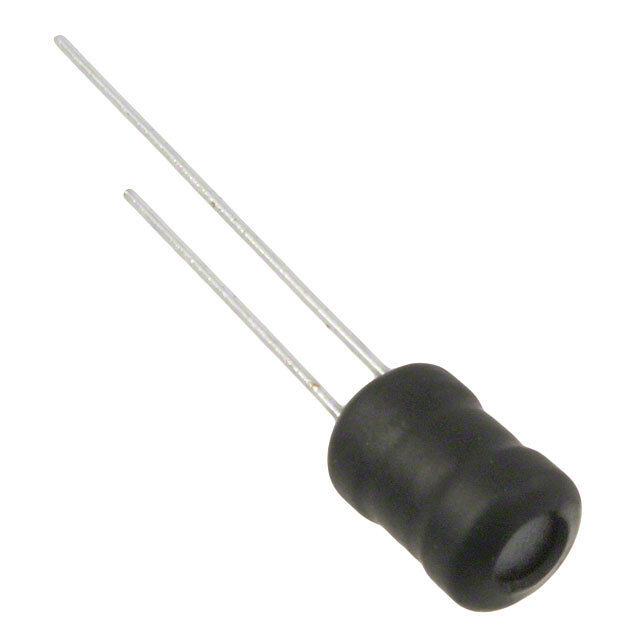

Same model may have multiple batches, images only for reference.
RLB1014-222KL Bourns Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

RLB1014-222KL

Part No RLB1014-222KL
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2MH 260MA 8.4 OHM TH
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 2.2 mH
Tolerance ±10%
Current Rating (Amps) 260 mA
Current - Saturation (Isat) 270mA
Shielding Unshielded
DC Resistance (DCR) 8.4Ohm Max
Q @ Freq 50 @ 252kHz
Frequency - Self Resonant 550kHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 252 kHz
Mounting Type Through Hole
Case / Package Radial, Vertical Cylinder
Size / Dimension 0.343" Dia (8.70mm)
Height - Seated (Max) 0.512\
Package Bulk
Supply and Demand Status Normal
Win Source Part Number 1533120-RLB1014-222KL
Ultra Librarian 3D Model Ultra Librarian RLB1014-222KL CAD Model

Description

N
