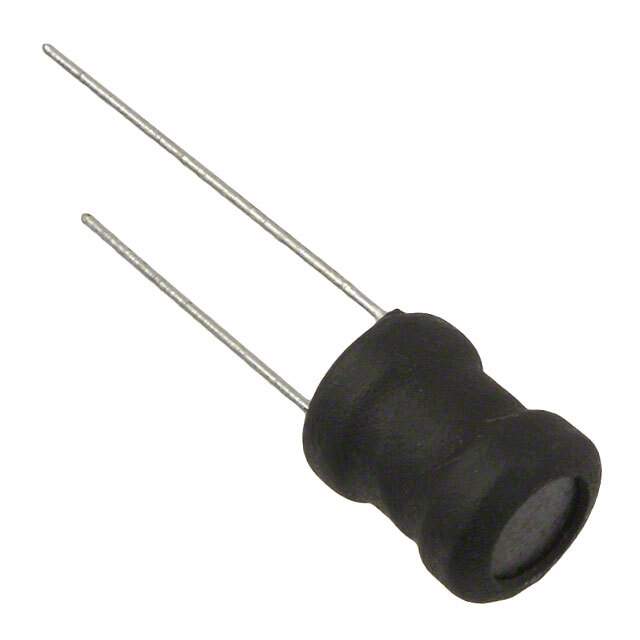

Same model may have multiple batches, images only for reference.

RLB1014-102KL

Name: RLB1014-102KL
Brand: Bourns Inc.
SKU: 1192625
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	RLB1014-102KL
Manufacturer	Bourns Inc.
Catalog	Fixed Inductors
Description	FIXED IND 1MH 360MA 4.1 OHM TH / 1 mH Unshielded Drum Core, Wirewound Inductor 360 mA 4.1Ohm Max Radial, Vertical Cylinder
Datasheet	RLB1014-102KL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Bourns Inc.
Series	RLB
Package	Bulk
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	1 mH
Tolerance	±10%
Current Rating (Amps)	360 mA
Current - Saturation (Isat)	600mA
Shielding	Unshielded
DC Resistance (DCR)	4.1Ohm Max
Q @ Freq	50 @ 252kHz
Frequency - Self Resonant	900kHz
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	252 kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Dimension	0.343" Dia (8.70mm)
Height - Seated (Max)	0.512" (13.00mm)
Base Product Number	RLB1014
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	150
Win Source Part Number	1192625-RLB1014-102KL
Ultra Librarian 3D Model	Ultra Librarian RLB1014-102KL CAD Model

Alternative Products

Description

The RLB1014-102KL is a fixed inductor component part of the RLB series manufactured by Bourns Inc.

Type: Drum core, wirewound
Core Material: Ferrite
Tolerance: ±10%
Inductance: 1mH
Height when Seated: 0.512 inches
Package/Case: Radial, vertical cylinder
Note: This component may require extra attention during the procurement process.
