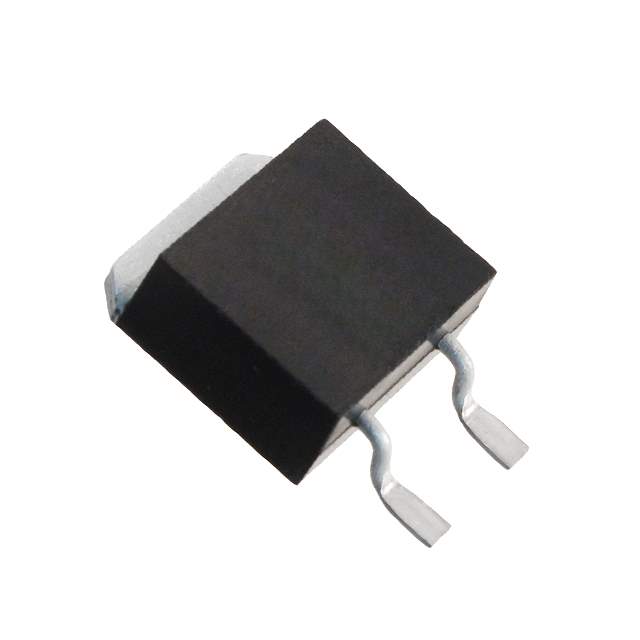

PWR263S-35-8R20F Real Image
Same model may have multiple batches, images only for reference.

PWR263S-35-8R20F

Part No PWR263S-35-8R20F
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 8.2 OHM 1% 35W D2PAK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Bourns Inc.
Packaging Tube
Resistance 8.2 Ohms
Tolerance ±1%
Power (Watts) 35W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Manufacturer Package TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Supplier Device Package D2PAK
Dimension 0.398" L x 0.409" W (10.10mm x 10.40mm)
Height - Seated (Maximum) 0.192" (4.88mm)
Number of Terminations 2
Part Number Series PWR263S
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812131-PWR263S-35-8R20F
Ultra Librarian 3D Model Ultra Librarian PWR263S-35-8R20F CAD Model

Description

The Bourns Inc. PWR263S-35-8R20F current sense resistor, manufactured by Bourns Inc., has a thick film composition.

  • Power Rating: 35W
  • Resistance: 8.2 Ohms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Applications: Automotive AEC-Q200
  • Package: D2PAK (2 leads + tab)
  • Dimensions: 0.398" L x 0.409" W (10.10mm x 10.40mm)
  • Seated Height: 0.192" (4.88mm)
  • Series: PWR263S
  • Supply Status: Limited
  • Manufacturer Pack Quantity: 50
