Same model may have multiple batches, images only for reference.

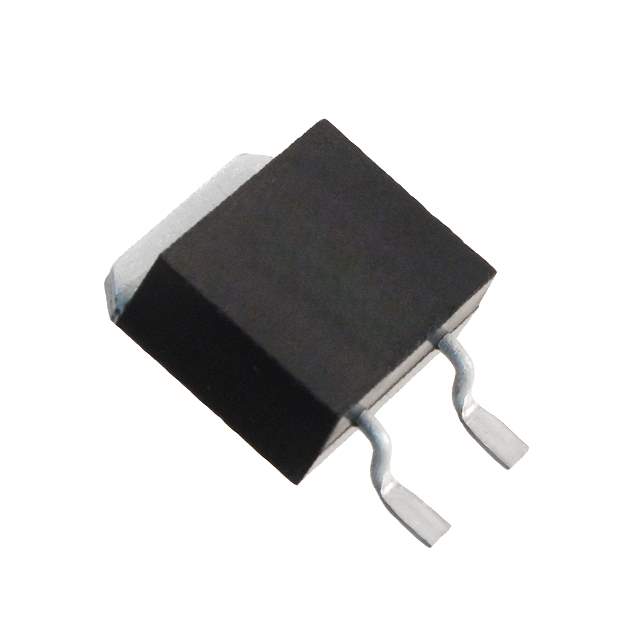

PWR263S-35-27R0F Real Image
Same model may have multiple batches, images only for reference.

PWR263S-35-27R0F

Part No PWR263S-35-27R0F
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 27 OHM 1% 35W D2PAK / Res Thick Film 27 Ohm 1% 35W ±100ppm/°C TO-263 Gull Wing SMD Automotive Tube
Datasheet
PWR263S-35-27R0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Bourns Inc.
Series PWR263S-35
Packaging Tube
Resistance (Ohms) 27
Tolerance ±1%
Power (Watts) 35W
Composition Thick Film
Features Automotive AEC-Q200, Current Sense, Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Operating Temperature Range -55°C ~ 155°C
Package TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Manufacturer Package D2PAK
Dimension 0.398" L x 0.409" W (10.10mm x 10.40mm)
Height - Seated (Maximum) 0.192" (4.88mm)
Number of Terminations 2
Win Source Part Number 792752-PWR263S-35-27R0F
Popularity Medium
Supply and Demand Status Limited
Family Name PWR263S-35
Introduction Date March 02, 2011
ECCN EAR99
Country of Origin Costa Rica
Halogen Free Not Compliant
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian PWR263S-35-27R0F CAD Model

Description

The Bourns PWR263S-35 is a high-quality thick film resistor that is designed to provide reliable performance in various electronic applications.

  • Package: TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
  • Mounting Style: Through-hole
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 35W
  • Resistance: 27 ohms
  • Applications: Current Sense, Pulse Withstanding
  • Family Name: PWR263S-35
  • Halogen-Free: Compliant
  • Dimensions: 0.398" L x 0.409" W (10.10mm x 10.40mm)
  • Country of Origin: Costa Rica
