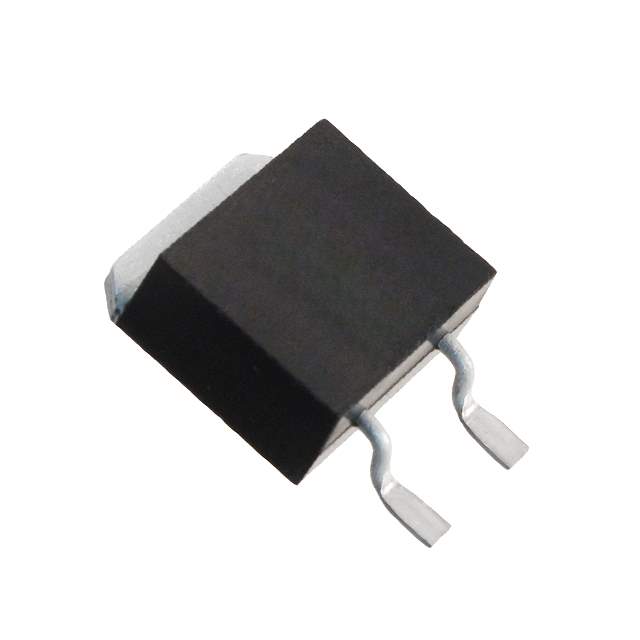

PWR263S-35-20R0F Real Image
Same model may have multiple batches, images only for reference.

PWR263S-35-20R0F

Part No PWR263S-35-20R0F
Manufacturer Bourns Inc.
Catalog Chip Resistor - Surface Mount
Description RES SMD 20 OHM 1% 35W D2PAK
Datasheet
PWR263S-35-20R0F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 12 Weeks
Features 20 Ohms ±1% 35W Chip Resistor TO-263-3, D²Pak (2 Leads + Tab), TO-263AB Automotive AEC-Q200, Current Sense, Pulse Withstanding Thick Film
Manufacturer Bourns Inc.
Series PWR263S-35
Package Tube
Operating Temperature Range -55°C ~ 155°C
Package TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Case / Package D2PAK
Family Name PWR263S
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Quantity per package 50
Popularity High
Supply and Demand Status Limited
Win Source Part Number 890498-PWR263S-35-20R0F
Ultra Librarian 3D Model Ultra Librarian PWR263S-35-20R0F CAD Model

Description

The PWR263S-35-20R0F is a 20 Ohms ±1% 35W chip resistor that is ideal for use in current sense and pulse-withstanding thick film applications from Bourns.

  • Resistance: 20 Ohms ±1%
  • Power: 35W
  • Package: TO-263-3, D2Pak (2 Leads + Tab), TO-263AB automotive AEC-Q200
  • Mounting Type: Surface Mount
  • Temperature Range: -55°C to 155°C
  • Dimensions: 0.450" L x 0.320" W x 0.110" H (11.43mm x 8.13mm x 2.79mm)
  • Standard Package: 50
  • ECCN: EAR99
