Same model may have multiple batches, images only for reference.

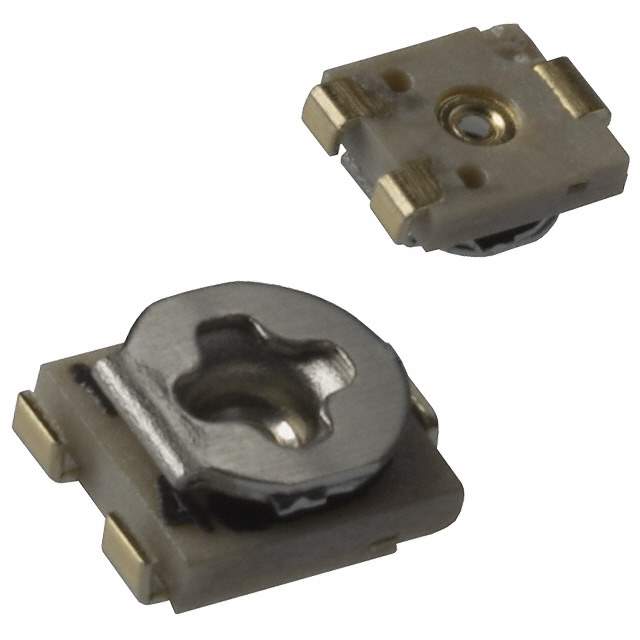

PVZ2A304A01R00 Real Image
Same model may have multiple batches, images only for reference.

PVZ2A304A01R00

Part No PVZ2A304A01R00
Manufacturer Bourns Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 300K OHM 0.1W SMD
Datasheet
PVZ2A304A01R00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Bourns Inc.
Packaging Cut Reel
Status Obsolete(EOL)
Resistance (Ohms) 300k
Power (Watts) 0.1W, 1/10W
Tolerance ±30%
Temperature Coefficient ±500ppm/°C
Number of Turns 1
Adjustment Type Top Adjustment
Resistive Material Carbon
Mounting SMD (SMT)
Termination Style Gull Wing, 90° Bend
Dimension Square - 0.087" x 0.083" Face x 0.035" H (2.20mm x 2.10mm x 0.90mm)
Win Source Part Number 115967-PVZ2A304A01R00
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PVZ2A304A01R00 CAD Model

Description

The Bourns Inc. PVZ2A304A01R00 is an obsolete (EOL) component suitable for various electronic applications.

  • Status: Obsolete (EOL)
  • Win Source Part Number: Available
  • Packaging: Cut reel
  • Termination Style: Gull-wing, 90-degree bend
  • Mounting: SMD (SMT)
  • Tolerance: ±30%
  • Temperature Coefficient: ±500ppm/°C
  • Power: 0.1W, 1/10W
  • Resistance: 300k ohms
  • Number of Turns: 1
  • Adjustment Type: Top adjustment
  • Resistive Material: Carbon
  • Dimension: Square - 0.087" x 0.083" face x 0.035" H (2.20mm x 2.10mm x 0.90mm)
